Draka Style 2464

Overall Screened Data Control Cable

Technical Details
Conductor Stranded Tinned Copper
Operating Voltage 300V
Insulation SR-PVC
Insulation colour White/Brown, Green/Yellow, Gray/Pink, Blue/Red
Drain wire(Construction,mm) 7/0.254mm Stranded Tinned Copper
Screen Overall Foil Shield + Drain Wire
Sheath PVC/LSZH
Operating Temperature -20°C to +70°C
Cable Dimension
Conductor Size DC Resistance @
20°C (Ω/km)		 No of Pairs Nom. OD (mm)
16 AWG ≤ 14.5 1 Pair 6.2
≤ 14.5 2 Pair 9.0
≤ 14.5 4 Pair 11.0
18 AWG ≤ 23.2 1 Pair 5.6
≤ 23.2 2 Pair 8.0
≤ 23.2 4 Pair 10.0
20 AWG ≤ 36.7 1 Pair 5.0
≤ 36.7 2 Pair 6.4
≤ 36.7 4 Pair 7.7
22 AWG ≤ 59.4 1 Pair 4.6
≤ 59.4 2 Pair 5.5
24 AWG ≤ 94.2 1 Pair 4.0
≤ 94.2 2 Pair 5.0
≤ 94.2 3 Pair 5.8
≤ 94.2 4 Pair 6.7

Application

  • For installation requiring flexible connector cable to fulfill measuring,controls & command applications. Example : Computer Interconnection,Data Transmission,Control Circuits,Industrial Equipment Control,suitable for EIA RS-232 applications.
Ordering Information
Draka Style 2464 part numbers are made up using the table below.
The part number starts with 24 to denote that it is an UL 2464 cable.
The following number shows the number of pairing and the last 2 numbers signifies the AWG.
The following letter describes the sheath type & colour.

Example of an UL 2464 part number -

24116GY

The above example describes an UL 2464 cable with 1 pair, 16 AWG. Sheath type PVC.

UL 2464 PAIRING AWG SHEATH Colour
24 X XX X X
1 - 1 Pair
2 - 2 Pair
3 - 3 Pair
4 - 4 Pair

16 - 16 AWG
18 - 18 AWG
20 - 20 AWG
22 - 22 AWG

(nil) - PVC
L- LSZH

GY-Grey

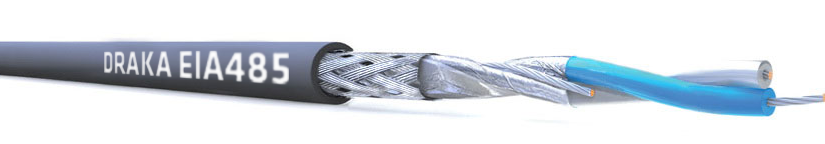

Draka RS-485 24 AWG FPE

Serial Data Communication Cable

Construction
Conductor Stranded Tinned Copper
Insulation Foam PE
Colour Pair 1: 1 x white, 1 x blue Pair 2: 1 x white, 1 x orange
Pair 3: 1 x white, 1 x black Pair 4: 1 x green
1st Screen 1 x AL-Mylar Wrap, overlapping ≥ 25 %
Drain Wire Stranded Tinned Copper
Braid Shield Tinned Copper ; coverage ≥ 85%
Sheath PVC/LSZH/LSZH ATARUV
Braid Armour (Optional) Galvanized Steel Wire Braid
Outer Sheath (Optional) LSZH / LSZH ATARUV
Pair 1P 2P 3P 4P
Nom. Cable OD mm
TC/FPE/OS/TCWB/PVC 6.2 8.5 9.1 9.8
TC/FPE/OS/TCWB/LSZH 6.2 8.5 9.1 9.8
TC/FPE/OS/TCWB/LSZH ATARUV 6.2 8.5 9.1 9.8
TC/FPE/OS/TCWB/LSZH/SWB/LSZH 10.7 13.0 13.6 14.3

Application

  • For multi-dropped,medium-speed,serial data communication in electrically noisy industrial environments.Application includes industrial networks using RS-485/RS- 422/RS-232 transceivers, for Process Automation (chemicals, brewing, paper mills), factory automation (autos, metal fabrication), HVAC, security, motor control and motion control.Suitable for outdoor installation.

Flame Rating

  • IEC 60332 – 1
Electrical properties
Conductor Resistance (at 20ºC)   ≤ 89 Ω/km
Capacitance cond. to cond. Nom. 12.5 pF/ft
Impedance Nom. 120 Ω
Rated Voltage 300 V
Mechanical properties
Operating temperature -20°C to +70°C
Bend Radius 10 x OD
Ordering Information
RS-485  part numbers are made up using the table below.
The part number starts with 48 to denote that it is an EIA-485 cable.
The following number shows the number of pairing and the last 2 numbers signifies the AWG.

Example of an EIA-485 part number

48124LB

The above example describes an RS-485 SWB cable with 1 pair, 24 AWG. Sheath type LSZH, SWB

RS- 485 PAIRING AWG SHEATH OUTER JACKET ADDITIVE
48 X XX X X X
1 - 1 Pair
2 - 2 Pair
4 - 4 Pair



24 -24 AWG


(nil) - PVC
L- LSZH


B - SWB
 RTV- Anti-Rodent, Anti-Termite, UV Resistance

LONAK® 2 x 1.3 mm² ARM

Building automation cable

Application

  • Fixed indoor installations
  • LON cabling
  • Building automation
Construction
Conductor Stranded copper wires, tinned 1.3 mm²
Insulation PE
Conductor identification 1 x white, 1 x blue
Pair stranding 2 conductors to the pair
Cable lay up 1 pair to the core
Wrapping 1 x PET foil
Rip cord and identification thread yes
Inner sheath PVC, grey RAL 7035
Wrapping 1 x PET foil
Armouring 2 x galvanized steel tape 15×0.20 mm
Outer sheath PE, black RAL 9005
Outer Diameter Nom. 10.3 mm
Weight Nom. 172 kg/km
Mechanical properties
Operating temperature – 30°C to + 70°C
Min. Installation temperature – 5°C
Minimum bending radius 10 x D
Minimum bending radius (during pulling) 15 x D
Maximum pulling force 130 N
Electrical properties at 20°C
Loop DC resistance (max.) 28 Ω/km
Insulation resistance (at 500 V, 1 min.) 100 MΩ*km
Mutual capacitance at 800 Hz (max.) 72 nF/km
Velocity factor 0.67
Max. operating voltage DC 75 V
Test voltage conductor/conductor 3.5 kV
Ordering Information
P/N Product Description P.U
60013680 2×1.3 mm², Building automation cable, LONAK® 2 x 1.3 mm² ARM 1000m/drum

NOMAK®-E

Symmetrical data cable for industrial control equipment

Application

  • These symmetrical data transmission cables are used in control and supervision center for industrial sites. They are suitable for fixed installation inside housings.

Fire Rating

  • Oxygen Index LOI acc. to ASTM – D- 2863: no limit
  • IEC 60332-1
Construction
Conductor Stranded tinned copper 7x 0.29 mm
Insulation PVC (Y)
Conductor identification a-conductor b-conductor
Pair 1 Blue Red
Pair 2 Grey Yellow
Pair 3 Green Brown
Pair 4 White Black
Stranding 2 conductors to pair
Stranding to core (0+4) each 4-pair bundle with numbered
Overall shielding Laminated AL-foil + tinned copper drain wire 0.5 mm²
Outer sheath PVC (Y), grey (RAL 7035)
Outer Diameter Nom. 7.0(2pair) – 23.5(48pair) mm
Weight Nom. 55(2pair) – 747(48pair) kg/km
Mechanical properties
Operating temperature – 30°C to + 70°C
Min. Installation temperature – 5°C
Electrical properties at 20°C
Loop resistance 81 Ω/km
Insulation resistance (at 500 V, 1 min.) 100 MΩ*km
Capacitance at 800 Hz 85 nF/km
for 2 and 4 pairs 90 nF/km
Max. operating voltage 75 V
Relative velocity factor NVP 0.60
Impedance (at 10 MHz) 100 Ω +/- 10 %
Frequency Attenuation
[kHz] [dB/100 m]
9.6 0.3
19.2 0.5
64 0.7
100 0.9
200 1.5
1000 2.9
Ordering Information
P/N Product Description P.U
1003576 2x2x0.5, Symmetrical data cable for industrial control equipment, NOMAK®-E 1000m/drum
1003577 4x2x0.5, Symmetrical data cable for industrial control equipment, NOMAK®-E 1000m/drum
1005546-01000DX 8x2x0.5, Symmetrical data cable for industrial control equipment, NOMAK®-E 1000m/drum

JAMAK®-ARM

Symmetrical Data Cable for Industrial Control Equipment

Application

  • These symmetrical data transmission cables are used in control and supervision center for industrial sites. The cables with armouring and PE outer sheath are suitable for direct buried installation.

Flame Rating

  • Oxygen Index LOI acc. to ASTM – D- 2863: no limit
  • IEC 60332-1
Construction
Conductor Stranded tinned copper 7x 0.29 mm
Insulation PE (2Y)
Conductor identification a-conductor blue; b-conductor red
Stranding 2 conductors to pair
Pair shielding Laminated AL-foil + copper drain wire
Overall shielding Laminated AL-foil + copper drain wire
Inner sheath PVC (Y), grey
Armouring Steel tape, helically wounded
Outer sheath PE (2Y), black
Outer Diameter According to technical datasheet
Mechanical properties
Operating temperature – 15°C to + 70°C
Min. Installation temperature – 5°C
Electrical properties at 20°C
Loop resistance 81Ω /km
Insulation resistance (at 500 V, 1 min.) 2 GΩ*km
Capacitance at 800 Hz 85 nF/km
Max. operating voltage 75 V
Relative velocity factor NVP 0.66
Impedance (at 10 MHz) 70 Ω +/- 10 %
Frequency Attenuation
[kHz] [dB/100 m]
9.6 0.3
19.2 0.5
64 0.7
100 0.9
200 1.6
1000 4.5
Ordering Information
P/N Product Description P.U
60027481 4x(2+1)x0.5, Symmetrical Data Cable for Industrial Control Equipment, JAMAK®-ARM 1000m/drum
60027482 8x(2+1)x0.5, Symmetrical Data Cable for Industrial Control Equipment, JAMAK®-ARM 1000m/drum
60027483 12x(2+1)x0.5, Symmetrical Data Cable for Industrial Control Equipment, JAMAK®-ARM 1000m/drum
60027484 24x(2+1)x0.5, Symmetrical Data Cable for Industrial Control Equipment, JAMAK®-ARM 1000m/drum
