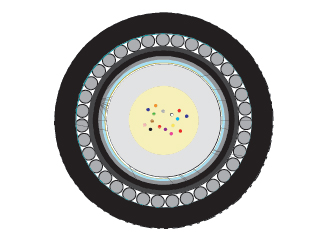

Features
-
Loose Tube: The secondary coating consists of a central loose tube made of special thermoplastic plastics. Each fiber in the central tube is uniquely identified by a different colour , for fiber counts above 12 fibers a coloured bundle yarn is used.
-
Cable core: the cable core is covered with water blocking swellable tape.
-
Moisture Barrier: The cable is completely covered with the aluminum foil applied longitudinally with an overlap. The aluminum foil is bonded to the inner sheath.
-
1st inner sheath: The first inner sheath consists of HDPE(high density polyethylene ) Black compound.
-
2nd inner sheath: The 2nd inner sheath consists of PA.
-
Armour: The armour consists of one layer of galvanized soft steel wires(SWA).
-
Outer sheath: The cable sheath consists of Flame Retardant PVC compound ,resistant to UV, heat & oil.
| Technical Data |
| Technical Data |
|
1-24 |
| Loose Tube- |
mm |
3.1 |
| 1st inner sheath thickness |
mm |
1.0 |
| 2nd inner sheath thickness |
mm |
0.5 |
| Dia over 2nd inner sheath |
mm |
7.1 |
| Armour SWA thickness |
mm |
1.0 |
| Dia over SWA armour |
mm |
9.1 |
| Sheath thickness |
mm |
1.6 |
| Cable Diameter |
mm |
12.3 |
| Cable weight |
mm |
280 |
Please refer to our General Installation, Safety & Handling recommendations before handling.
