UCCONNECT® PATCH PANEL LIGHT WEIGHT BK
1U 72 Port, 3 Modules, Compact Duplex LC, Insertion
Features
- Light weight
- Sleek design & feel
- Easy fix up to 3 modules
- Highly durable
- Abrasion resistance
| Construction | |
|---|---|
| Dust Cover | PVC |
| Matrix | Aluminum Thickness 1.5mm |
| Adapter Plate & Panel | Aluminum Thickness 1.5mm |
| Lock | Stainless panel screw |
| Adaptor | MTP® (rear), Duplex LC (Front) |

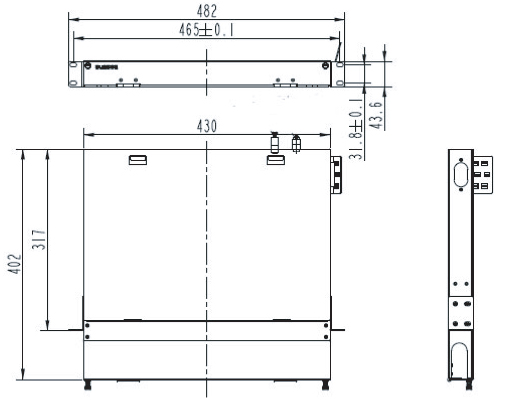

| Dimension | 43.6mm x 482mm x 410mm |
| Weight | ≤3.5 kg - Empty |
| Surface Finish | Special Powder Coating |
+ Standard Panel comes in empty, unloaded
Overview
- MTP® is a registered MPO connector, Trademark of USCONEC
- Fibre Integrated technology for compact storage. Extremely convinient installations using unique modular design.
| Ordering Information | ||||
|---|---|---|---|---|
| UC P/N | Product Description | P.U | ||
| PP9401 | UC 1U Distribution Modular Panel,3 Slot,Empty | 1pc | ||
| 20K9501 | Fixed-Module,MTP®/LC,12F,9/125um | 2 pc/box | ||
| 20K9502 | Fixed-Module,MTP®/LC,24F,9/125um | 2 pc/box | ||
| 20K9503 | Fixed-Module,MTP®/LC,12F,62.5/125um | 2 pc/box | ||
| 20K9504 | Fixed-Module,MTP®/LC,24F,62.5/125um | 2 pc/box | ||
| 20K9505 | Fixed-Module,MTP®/LC,12F,50/125um | 2 pc/box | ||
| 20K9506 | Fixed-Module,MTP®/LC,24F,50/125um | 2 pc/box | ||
| 20K9509 | Fixed-Module,MTP®/LC,12F,50/125um,OM3,LZ300 | 2 pc/box | ||
| 20K9510 | Fixed-Module,MTP®/LC,24F,50/125um,OM3,LZ300 | 2 pc/box | ||
