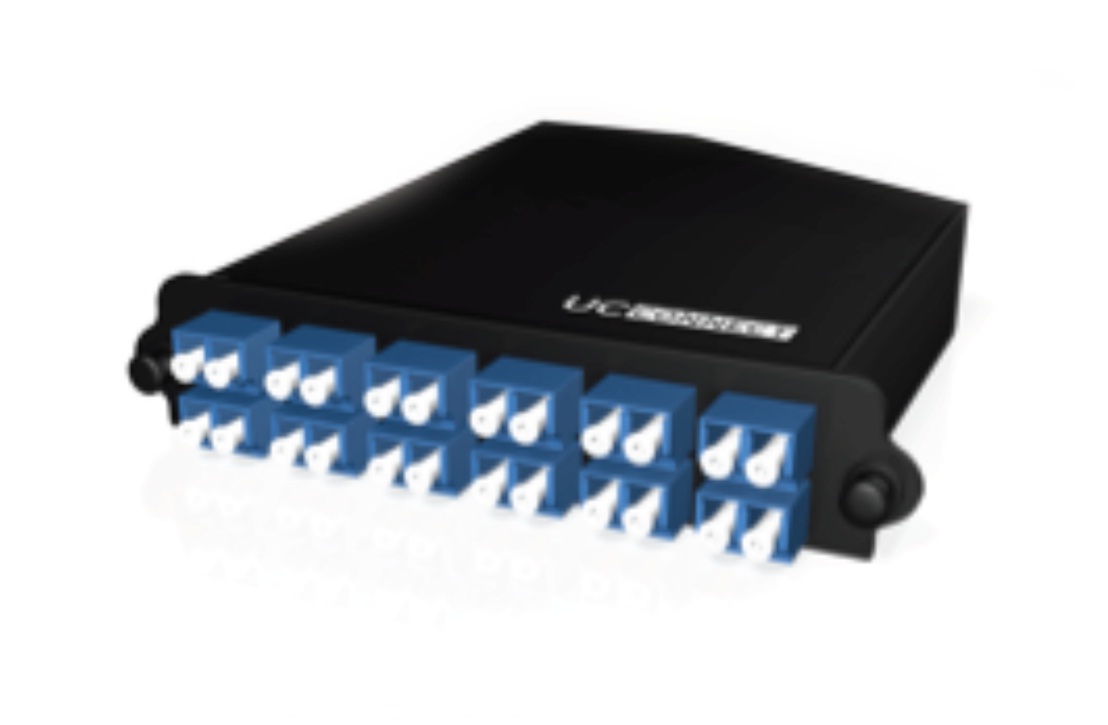

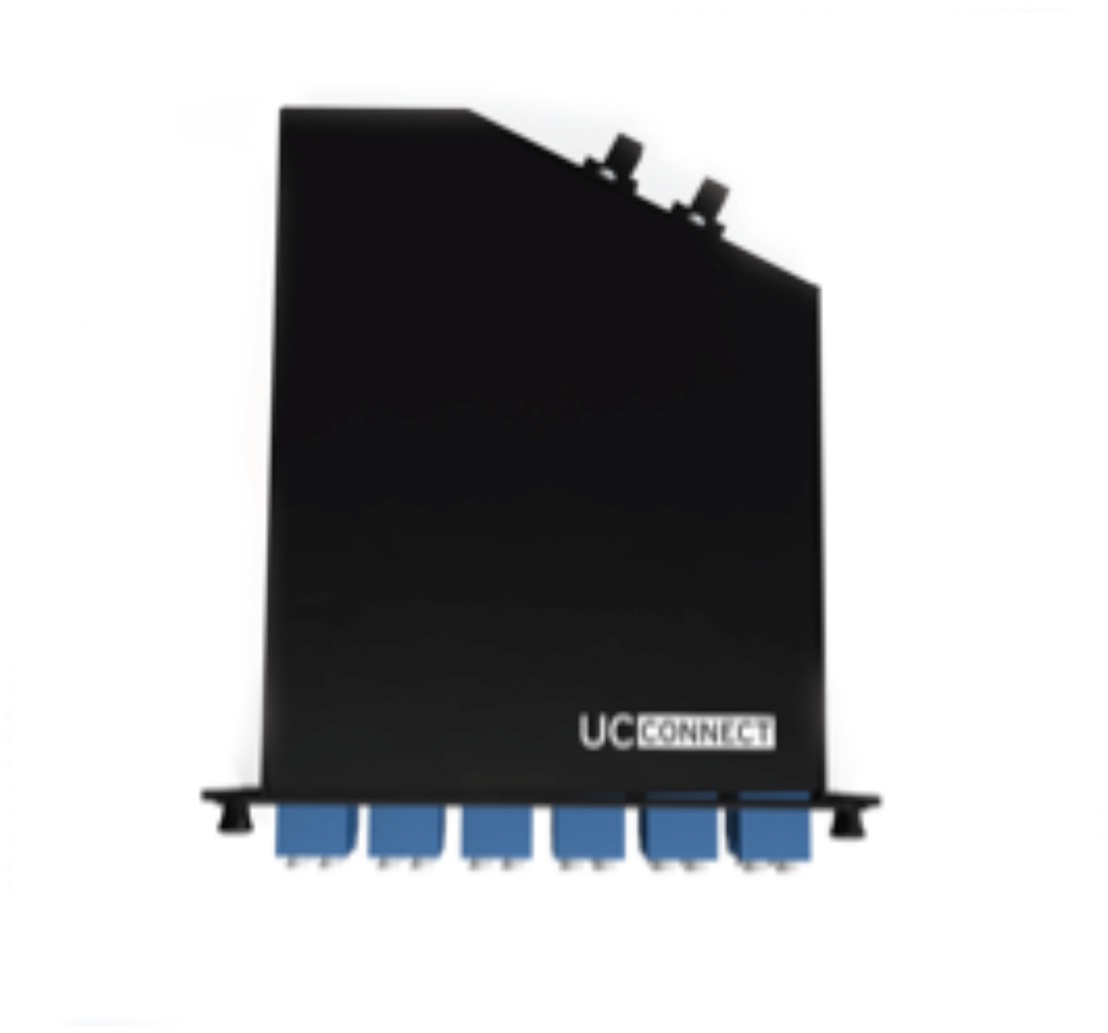

UCCONNECT® MTP Module

24 Port Duplex LC, Fibre Integrated Solution

Features

Light weight
Sleek, easy to fit
Low loss MTP connectors
Bend insensitive BendbrightXS fibres

Overview

MTP® is registered MPO connector, Trademark of USCONEC
Designed with the installers mind for easy and compact patching, idea fit for our patch panels series.
The MTP® modules are equipped with Draka's unique bend insensitive Bendbright^XS fibres

Construction
Matrix	Aluminum Thickness 1.5mm

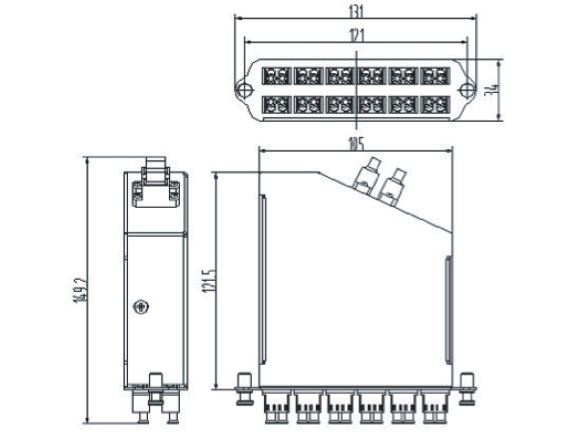

Dimension	34mm x 131mm x 121mm
Adaptor	MTP (Rear Side), Duplex LC (Front Side)
Weight	≤150g
Surface Finish	Black

+ Standard Panel comes in empty, unloaded

Ordering Information
UC P/N	Product Description	P.U
20K9501	Fixed-Module,MTP®/LC,12F,9/125um	2pc/box
20K9502	Fixed-Module,MTP®/LC,24F,9/125um	2pc/box
20K9503	Fixed-Module,MTP®/LC,12F,62.5/125um	2pc/box
20K9504	Fixed-Module,MTP®/LC,24F,62.5/125um	2pc/box
20K9505	Fixed-Module,MTP®/LC,12F,50/125um	2pc/box
20K9506	Fixed-Module,MTP®/LC,24F,50/125um	2pc/box
20K9509	Fixed-Module,MTP®/LC,12F,50/125um,OM3,LZ300	2pc/box
20K9510	Fixed-Module,MTP®/LC,24F,50/125um,OM3,LZ300	2pc/box
20K9521	Fixed-Module,MTP®/ST,12F,9/125um	2pc/box
20K9522	Fixed-Module,MTP®/ST,12F,62.5/125um	2pc/box
20K9523	Fixed-Module,MTP®/ST,12F,50/125um	2pc/box
20K9525	Fixed-Module,MTP®/ST,12F,50/125um,OM3,LZ300	2pc/box
20K9531	Fixed-Module,MTP®/SC,12F,9/125um	2pc/box
20K9532	Fixed-Module,MTP®/SC,12F,62.5/125um	2pc/box
20K9533	Fixed-Module,MTP®/SC,12F,50/125um	2pc/box
20K9535	Fixed-Module,MTP®/SC,12F,50/125um,OM3,LZ300	2pc/box
20K9581	Fixed-Module,MTP®/FC,12F,9/125um	2pc/box
20K9582	Fixed-Module,MTP®/FC,12F,62.5/125um	2pc/box
20K9583	Fixed-Module,MTP®/FC,12F,50/125um	2pc/box
20K9585	Fixed-Module,MTP®/FC,12F,50/125um,OM3,LZ300	2pc/box
