UCCONNECT® High Density Modular Panel
4U 288 Port LC Duplex Patch Panel, Insertion
Features
- Light weight
- Sleek design & feel
- Highly durable
- Abrasion resistance
- Compact & High Density
| Construction | |
|---|---|
| Dust Cover | PVC |
| Matrix | Aluminum Thickness 1.5mm |
| Panel | Aluminum |
| Lock | Latch Lock |
| Adaptor | MTP (rear), Duplex LC (front) |

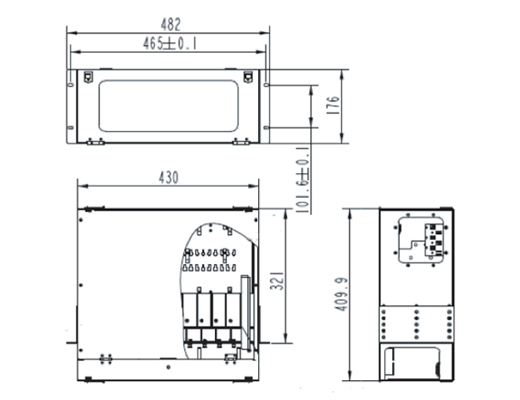

| Dimension | 4U x 482mm x 410mm |
| Weight | ≤4.8 kg - Empty |
| Surface Finish | Special Powder Coating |
+ Standard Panel comes in empty, unloaded
Overview
- MTP® is a registered MPO connector, Trademark of USCONEC
- Fibre Integrated Solutions provide high density optical cabling terminations, and easy installation design for finger access, without the use of additional tools.
| Ordering Information | ||||
|---|---|---|---|---|
| UC P/N | Product Description | P.U | ||
| PP9400 | UC 4U Distribution Modular Box,12 Slot,Empty | 1pc | ||
| 20K9501 | Fixed-Module,MTP®/LC,12F,9/125um | 2pc/box | ||
| 20K9502 | Fixed-Module,MTP®/LC,24F,9/125um | 2pc/box | ||
| 20K9503 | Fixed-Module,MTP®/LC,12F,62.5/125um | 2pc/box | ||
| 20K9504 | Fixed-Module,MTP®/LC,24F,62.5/125um | 2pc/box | ||
| 20K9505 | Fixed-Module,MTP®/LC,12F,50/125um | 2pc/box | ||
| 20K9506 | Fixed-Module,MTP®/LC,24F,50/125um | 2pc/box | ||
| 20K9509 | Fixed-Module,MTP®/LC,12F,50/125um,OM3,LZ300 | 2pc/box | ||
| 20K9510 | Fixed-Module,MTP®/LC,24F,50/125um,OM3,LZ300 | 2pc/box | ||
