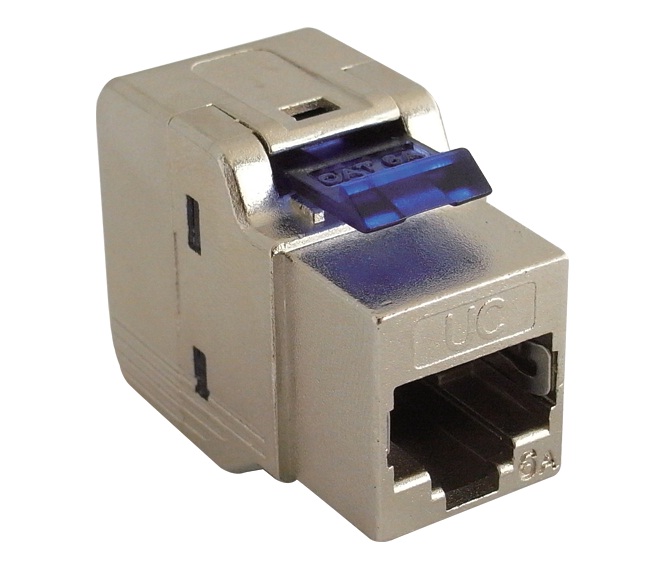

UC C500 MJ TR S V5
Keystone Jack,Cat.6A,RJ45,FTP, 180°, Tool Fast, Shielded
| Specification | |
|---|---|
| Item | Description |
| RJ45 Housing | Zinc Alloy with nickel plated |
| Contacts and IDC | Phosphor bronze |
| Contact Surface Finish | 50u" gold plated over contact area |
| IDC Surface Finish | Tin plated |
| IDC Housing | PC, UL94V0 |
| PCB | FR4 94V0 |
| Performance | |
|---|---|
| Item | Description |
| Wiring | TIA 568 A/B |
| Insertion Force | <=30N |
| Plug Insertion Life | 800 times insertion (RJ45) |
| Re-Termination | 10 Cycles |
| Wire Size Capability | 22 ~ 26 AWG solid wire |
- Category 6A hardware compliant performance.
- Zinc Alloy housing provides 100% EMC and Alien Crosstalk protection.
- ToolFast Technology, reduces up to 40% termination time.
- High Density Design provides optimize usage of rack space.
- Requires ToolFast P/N CJ9240.
- Component level tested.
- RoHS Compliant
Standards
- ANSI TIA/EIA 568-2;
- ISO/IEC 11801 2nd Ed.;
- IEC 60603-7-[4,5];
- EN 50173-1;
- EN 50173-2
| Ordering Information | ||||
|---|---|---|---|---|
| SAP IC | UC P/N | UC Material Code | Product Description | P.U |
| YMJBP00340 | MJTR9214 | UC C500 MJ TR S V5 | Keystone Jack,Cat.6a,RJ45,FTP, 180°, Tool Fast, Shielded | 1pc/bag |
