UC C400 KJ TF U WH V1/ BK V1
Keystone Jack,Cat.6,RJ45,UTP, 90° Tool Free, Solid White/ Black
| Specification | |
|---|---|
| Item | Description |
| RJ45 Housing | ABS+PC, UL94V0 |
| Contacts and IDC | Phosphor bronze |
| Contact Surface Finish | 50u" gold plated over contact area |
| IDC Surface Finish | Tin plated |
| IDC Housing | PC, UL94V0 |
| PCB | FR4 94V0 |
| Performance | |
|---|---|
| Item | Description |
| Wiring | TIA 568 B |
| Insertion Force | <=30N |
| Plug Insertion Life | 800 times insertion (RJ45) |
| Wire Size Capability | 22 ~ 26 AWG solid wire |
- Category 6 hardware compliant performance.
- Tool-free termination.
- High Density Design provides optimize usage of rack space.
- Component level tested.
- RoHS Compliant
Standards
- ANSI TIA/EIA 568-2;
- ISO/IEC 11801 2nd Ed.;
- IEC 60603-7-[4,5];
- EN 50173-1;
- EN 50173-2
| Ordering Information | ||||
|---|---|---|---|---|
| SAP IC | UC P/N | UC Material Code | Product Description | P.U |

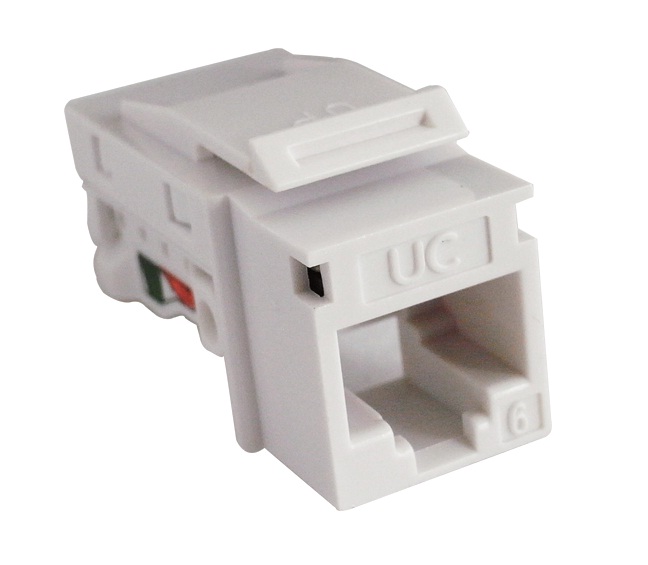

| YKJBP01009 | KJTF1264W | UC C400 KJ TF U WH V1 | Keystone Jack,Cat.6,RJ45,UTP, 90° Tool Free, Solid White | 1pc/bag |

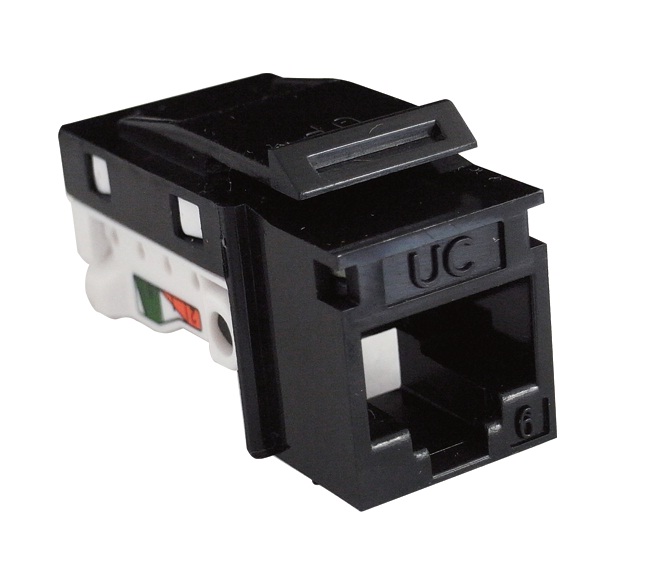

| YKJBP01010 | KJTF1264B | UC C400 KJ TF U BK V1 | Keystone Jack,Cat.6,RJ45,UTP, 90° Tool Free, Solid Black | 1pc/bag |
