UC C300 PW TR U BK 24 1U V1

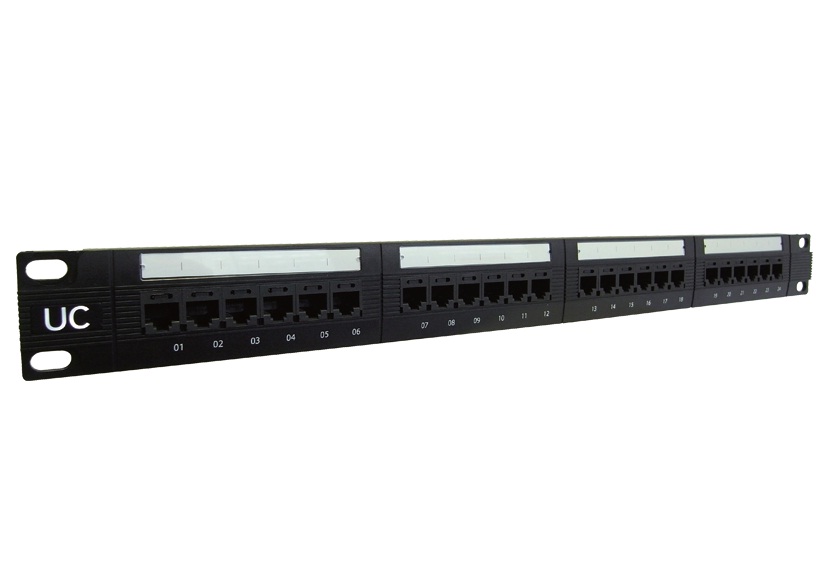

19" 1U 24P UTP, Punchdown Panel, RJ45, Cat.5e, 180°
| Specification | |
|---|---|
| Item | Description |
| Panel | SPCC, T=1.8mm, black coated |
| Front Cover | ABS+PC, UL94V0 |
| RJ45 Housing | PBT + 15% GF 94V0 |
| Contacts and IDC | Phosphor bronze |
| Contact Surface Finish | 50u" gold plated over contact area |
| IDC Surface Finish | Tin plated |
| IDC Housing | PC, UL94V0 |
| PCB | FR4 94V0 |
| Rear Cable Management | SPCC, black coated |
| Performance | |
|---|---|
| Item | Description |
| Wiring | TIA 568 A/B |
| IDC Type | 110 |
| Insertion Force | <=30N |
| Plug Insertion Life | 800 times insertion (RJ45, RJ11/RJ12) |
| Wire Size Capability | 22 ~ 26 AWG solid wire |
- Category 5e hardware compliant performance.
- “Write on” descripton label protected by clear plastic holder for clear port marking and identification.
- Supplied with rear cable management to ensure proper cable bending radius.
- Foldable rear cable management ideal for minimizing packaging size.
- Optional color-coded dust cover available for port protection.
- Component level tested.
| Ordering Information | ||||
|---|---|---|---|---|
| SAP IC | UC P/N | UC Material Code | Product Description | P.U |
| YPWBP00341 | PWU9746 | UC C300 PW TR U BK 24 1U V1 | 19" 1U 24P UTP, Punchdown Panel, RJ45, Cat.5e, 180° | 1pc/bag |
