UC C300 MJ TF U WH V1/ BK V1
Keystone Jack,Cat.5e,RJ45,UTP, 180°, Punch-down, White/ Black
| Specification | |
|---|---|
| Item | Description |
| RJ45 Housing | ABS+PC, UL94V0 |
| Contacts and IDC | Phosphor bronze |
| Contact Surface Finish | 50u" gold plated over contact area |
| IDC Surface Finish | Tin plated |
| IDC Housing | PC, UL94V0 |
| PCB | FR4 94V0 |
WiringTIA 568 A/B
| Performance | |
|---|---|
| Item | Description |
| Insertion Force | <=30N |
| Plug Insertion Life | 800 times insertion (RJ45, RJ11/RJ12) |
| Wire Size Capability | 24 ~ 26 AWG solid wire |
- Category 5e hardware compliant performance.
- Tool-free termination.
- High Density Design provides optimize usage of rack space.
- Component level tested.
- RoHS Compliant
Standards
- ANSI TIA/EIA 568-2;
- ISO/IEC 11801 2nd Ed.;
- IEC 60603-7-[4,5];
- EN 50173-1;
- EN 50173-2
| Ordering Information | ||||
|---|---|---|---|---|
| SAP IC | UC P/N | UC Material Code | Product Description | P.U |

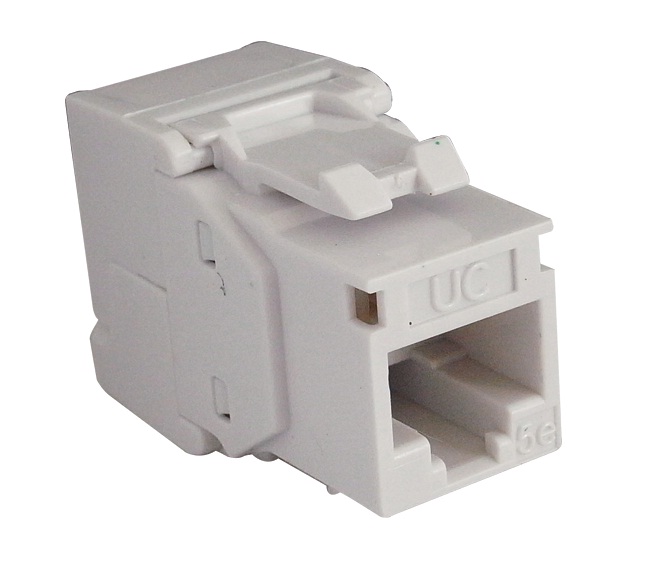

| YMJBP01565 | MJTF1252W | UC C300 MJ TF U WH V1 | Keystone Jack,Cat.5e,RJ45,UTP, 180°, Tool Free, White | 1pc/bag |

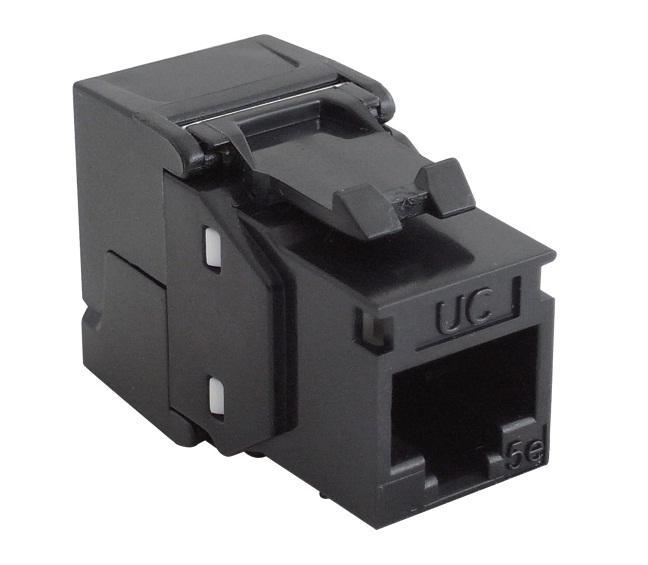

| YMJBP01566 | MJTF1252B | UC C300 MJ TF U BK V1 | Keystone Jack,Cat.5e,RJ45,UTP, 180°, Tool Free, Black | 1pc/bag |
