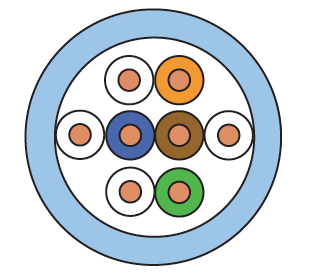

UC500 23 Cat.6A U/UTP

Mechanical properties
Minimum bending radius without load	8 x Diameter
Minimum bending radius with load	8 x Diameter
Temperature range during operation	-10°C up to +60°C
Temperature range during installation	-10°C up to +60°C

Electrical properties at 20°C
DC Loop resistance	≤ 150 Ω /km
DC Resistance unbalance	≤ 0.1 %
Insulation resistance (2.5 kV d.c.)	≥ 160,000 MΩkm
Mutual Capacitance at 800 Hz	Nom. 50 nF /km
Capacitance unbalance (pair to ground)	≤ 190 pF /km
Mean Characteristic impedance100 MHz	(100 ± 10) Ω
Nominal velocity of propagation	Nom. 65 %
Propagation delay	Nom. 557 ns /100m
Delay skew	Nom 35.4 ns /100m
Test voltage (d.c. ; 2 sec)	Nom. 2.5 kV
Attenuation @ 500 Mhz	41.0dB
NEXT @ 500 Mhz	56.6 dB
PS-NEXT @ 500 Mhz	54.6 dB
ACR @ 500 Mhz	16.6 dB
ACRF @ 500 Mhz	38.0 dB
PS-ACRF @ 500 Mhz	35.8 dB
