PB DP FC 1x2xAWG22/1 SWB LSHF
PROFIBUS DP FC Steel Wire Braid Armoured LSHF Cable, 150 Ohm
Application
Armoured indoor and outdoor Installation cable: - Halogen free and flame resistant - Limited segment length (according to PROFIBUS - Net Manual) - FastConnect-assembly - UV resistant - Silicon free - Limited oil and grease resistanceStandards
- EN 50170 part 8-2,cable type A, IEC 61158 and IEC 61784
Fire Rating
- IEC 60332 - 1,IEC -61034-2,IEC 60754 - 1 /2

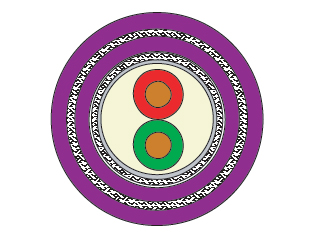

| Construction | |
|---|---|
| Conductor | bare copper wire, Φ 0.64 mm, (cross-section 0.32 mm²) |
| Insulation | foam-skin-PE, Φ 2.5 mm |
| Stranding | two cores gn / rd to the Pair |
| Bedding | halogen free, flame retardant thermoplastic sheathing compound acc. to EN 50290-2-27, filling the interstices Φ 5.4 mm |
| Static screen | PET-Al-Foil longitudinally applied |
| Braid | tinned copper braid, coverage approx. 70% |
| Sheath | halogen free, flame retardant thermoplastic sheathing compound acc. to |
| Armouring | EN 50290-2-27, violet, Φ 8.0 mm galvanized steel wire braid, optical coverage 85% Φ 9.1 mm |
| Outer sheath | halogen free, flame retardant thermoplastic sheathing compound acc. to EN 50290-2-27, violet, RAL 4005 Φ 12.0 mm |
| Outer Diameter | Nom. 12.0 mm |
| Weight | Nom. 208 kg/km |
| Tensile force N | 450 |
| Mechanical properties | |
|---|---|
| Bending radius | |
| Single bending | ≥ 60 mm |
| Repeated bending | ≥ 120 mm |
| Temperature range | - 30°C to + 70°C |
| Transport and storage | - 30°C to + 70°C |
| Installation | - 5°C to + 50°C |
| Electrical properties at 20°C | |
|---|---|
| Loop resistance | ≤ 110 Ω/km |
| Screen resistance nominal | 12 Ω/km |
| Characteristic impedance (Nominal) | 150 Ω |
| Mutual capacitance (at 1 kHz) | approx. 28.5 nF/km |
| Capacitance unbalance to earth max. | 1.5 nF/km |
| Insulation resistance | ≥ 5 GΩkm |
| Test Voltage (DC, 1 min) Core/Core and Core/Screen | 1 kV |
| Operating voltage (RMS) | ≤ 100 V |
| Inductance (nominal) | 0.90 mH/km |
| Electrical Data at 20°C | |||
|---|---|---|---|
| Frequency (kHz) | Impedance (Ohm) | Attenuation (dB/100m) | |
| 9.6 kHz | 270 ± 27 | ≤ 0.25 | |
| 38.4 kHz | 185 ± 18.5 | ≤ 0.4 | |
| 1 MHz | - | - | |
| 3 MHz | 150 ± 15 | - | |
| 4 MHz | 150 ± 15 | ≤ 2.2 | |
| 16 MHz | 150 ± 15 | ≤ 4.2 | |
| 20 MHz | 150 ± 15 | - | |
| Ordering Information | |||
|---|---|---|---|
| P/N | Product Description | P.U | |
| 60039258 | PROFIBUS DP FC Steel Wire Braid Armoured LSHF Cable, PB DP FC 1x2xAWG22/1 SWB LSHF | 1000m/drum | |
