NOMAK®
Symmetrical Data Cable for Industrial Control Equipment
Application
- These symmetrical data transmission cables are used in control and supervision center for industrial sites. They are suitable for fixed installation inside housings.
Fire Rating
- Oxygen Index LOI acc. to ASTM - D- 2863: no limit
- IEC 60332-1

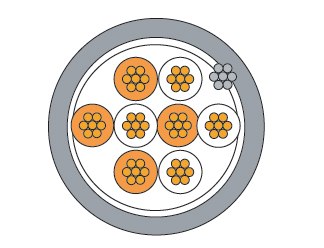

| Construction | |
|---|---|
| Conductor | Stranded tinned copper 7x 0.29 mm |
| Insulation | PE (2Y) |
| Conductor identification | a-conductor blue; b-conductor red |
| Stranding | 2 conductors to pair |
| Stranding to core | (0+4) |
| Overall shielding | Laminated AL-foil + tinned copper drain wire 0.5 mm² |
| Outer sheath | PVC (Y), grey (RAL 7035) |
| Outer Diameter | Nom. 6.7(2pair) - 23.5(48pair) mm |
| Weight | Nom. 52 (4pair) - 745(48pair) kg/km |
| Mechanical properties | |
|---|---|
| Operating temperature | - 30°C to + 70°C |
| Min. Installation temperature | - 5°C |
| Electrical properties at 20°C | |
|---|---|
| Loop resistance | 81 Ω/km |
| Insulation resistance (at 500 V, 1 min.) | 2 GΩ*km |
| Capacitance at 800 Hz | 85 nF/km |
| Max. operating voltage | 75 V |
| Relative velocity factor NVP | 0.66 |
| Impedance (at 10 MHz) | 70 Ω +/- 10 % |
| Frequency | Attenuation |
| [kHz] | [dB/100 m] |
| 9.6 | 0.3 |
| 19.2 | 0.5 |
| 64 | 0.7 |
| 100 | 0.9 |
| 200 | 1.6 |
| 1000 | 4.5 |
| Ordering Information | |||
|---|---|---|---|
| P/N | Product Description | P.U | |
| 1003555-01000DO | 2x2x0.5, Symmetrical data cable for industrial control equipment, NOMAK® | 1000m/drum | |
| 1003555-00200DW | 2x2x0.5, Symmetrical data cable for industrial control equipment, NOMAK® | 200m/drum | |
| 1003575-01000DO | 4x2x0.5, Symmetrical data cable for industrial control equipment, NOMAK® | 1000m/drum | |
| 1003575-00200DW | 4x2x0.5, Symmetrical data cable for industrial control equipment, NOMAK® | 200m/drum | |
| 1005542-01000DX | 8x2x0.5, Symmetrical data cable for industrial control equipment, NOMAK® | 1000m/drum | |
| 1005543-01000DX | 12x2x0.5, Symmetrical data cable for industrial control equipment, NOMAK® | 1000m/drum | |
| 1005544-01000DX | 24x2x0.5, Symmetrical data cable for industrial control equipment, NOMAK® | 1000m/drum | |
| 1005545-01000DX | 48x2x0.5, Symmetrical data cable for industrial control equipment, NOMAK® | 1000m/drum | |
