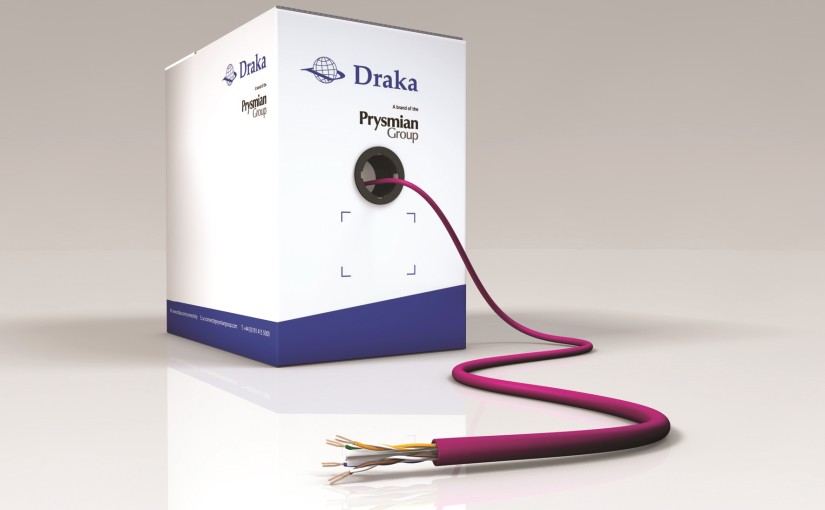

Cables and systems specialist Draka, part of the Prysmian Group, has launched a small diameter Category 6a patch cable. The cable’s reduced diameter gives it flexibility and saves space in high density patching areas.

Called Slimflex, the 30AWG (American Wire Gauge) stranded copper cable occupies just 60% of the space required by standard 24AWG patch cords, which makes for easier system changes and additions. The cable’s smaller 4.5mm diameter saves space in racks and cabinets when compared to standard 6mm diameter patch cables.

Slimflex’s tighter bend radius also makes for easier cable routing and simplified cable management. It can also improve airflow to help maintain equipment performance and reliability.

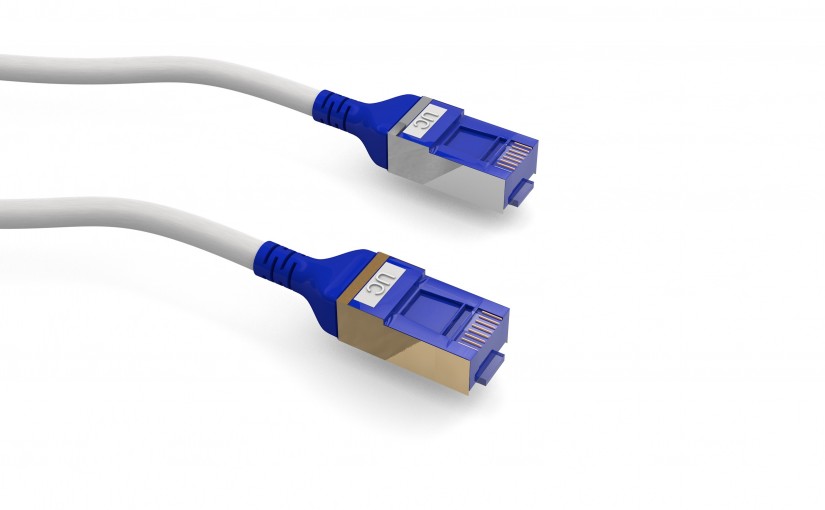

The Slimflex patch cables have a white outer sheath and are available in lengths of 1m, 1.5m, 2m, 3m, 4m and 5m to suit the majority of patch applications. The low smoke zero halogen cables are flame retardant and comply with IEC 60332-1.

The cables are fitted with RJ45 connectors which feature Draka’s unique tangle-free boot design and 1.27micron gold plated phosphor bronze plug pins to ensure the best connection over multiple mating cycles.

Slimflex is suitable for a variety of applications including 10GBase-T Ethernet, data centre input/output consolidation and server virtualization, backbone aggregation, high density greenfield network racks and brownfield cable managers running out of space.

Lee Stokes, Product Manager for UC Connect, said: “Draka’s Slimflex, small diameter UC Connect patch cables deliver Category 6a performance, with a significantly tighter bend radius, for easier routing and enhanced cable management to facilitate moves, adds and changes in tight spaces”.

Source: Technical MMS UK

This June, we welcomed business partners from around the region as Prysmian Group participated in CommunicAsia 2016 held at Marina Bay Sands, Singapore from 31May – 03 June.

Distributors and partners from our Multimedia Solutions business were taken on a “The Multimedia Experience” tour around the booth which showcased our new Cat 8.2 solutions, Multimedia Specials products and of course, our iconic DRAKA UC Structured Cabling Solutions which has seen remarkable growth in the region since its inaugural launch in 2013.

Year on year, our participation in the event enhances out foothold in the market and conglomerates our partners around ASIA to learn of our technology capabilities and updates; and at the same time, forge stronger bonds.

The booth had a constant flow of traffic and it was a huge success to us in terms of establishing ourselves as the World’s Largest Cable Brand. The event finishes off with a Customer Appreciation Dinner held at Carlton Hotel for up to 90 guests.

A big thank you to our regional partners, Fluke Networks and Psiber Data for their support, and the many business partners whom have visited our booth.



Source:Marketing MMS Asia/em>

One of the biggest challenges for businesses implementing a converged cabling infrastructure is the need to connect remote devices to the network. Zoran Borcic, Datacom product manager at cabling and systems specialist Draka, outlines the latest developments in long reach twisted pair copper cabling.

IP is being used for an increasing number of applications. Data, voice, security and building automation and management systems can now all run over a common twisted pair cabling infrastructure. More recently IP is being used for industrial applications, where the focus is on monitoring, control and data collection and visualisation – so called Supervisory Control and Data Acquisition or SCADA applications.

This shift to a converged cabling infrastructure is rapidly increasing as more and more business applications running on IP networks are introduced and increasing numbers of companies are recognising the potential value a converged cable network can bring. It is a shift that will place significant new demands on network infrastructure.

Multimedia networking is another growing trend, particularly in hotels, airports lounges and passenger ships, with applications ranging from distance learning to desktop video conferencing, instant messaging, workgroup collaboration, multimedia kiosks, entertainment and imaging.

In offices WLAN, and Wifi are gaining ground. In practice WLAN is integrated into cabling structures in line with EN50173. With the new generation WLAN 802.11ac we have the first volume application for 10GBase-T in offices, which requires dense 10Gb/s network of Class EA or better preferably with Power over Ethernet plus (PoE+) compatibility with Next Gen PoE.

The advantage of running all of these different applications over the same cabling infrastructure eliminates the need to design and install separate networks. It also simplifies network management including initial deployment and eventual reconfiguration; improves network scalability to accommodate growth; improves reliability, and offers considerable cost savings.

The disadvantage of converged cabling is that downtime no longer means employees just lose access to emails. Instead security, building management systems and video conferencing and power to remote devices will all be affected, which is why it is important to install only the best performing cables and connectivity components including jacks and patch panels.

These trends have all been taken into account by CENELEC in the new edition of EN 50173 Information Technology: Generic Cabling Systems. This is now divided into six categories:

EN 50173-1: General requirements

EN 50173-2: Office buildings

EN 50173-3: Industrial areas

EN 50173-4: Home environments

EN 50173-5: Data centres

EN 50173-6: Distributed building services

The way that the standard has been put together means that if a designer or specifier is looking to define the design for structured cabling in offices, then all they need to do is to simply refer to EN 50173-2: for industrial areas it is EN 50173-3. All of the application specific standards are underpinned by EN 50173-1: General requirements, which contains a lot of the detailed and technical information common to premises.

One of the challenges of a implementing a converged cabling infrastructure is the need to reach remote IP devices, such as remote security cameras, external temperature sensors or external door locks to the network. With conventional twisted pair cabling the horizontal distance is limited to 100m from the panel to the device so the designers and installers generally have three options:

1. Use fibre optic cabling and an Ethernet media converter at both ends of the cable. Depending on the type of fibre and application, data transmission can be supported for distances in excess of 100m. While this solution is standard compliant, it can be expensive and critically it is not possible to power a device remotely using fibre.

2. Use XR transceivers is another solution for fibre optic systems. However, for xBase-T they are not available or applicable. They are also expensive.

3. Long reach copper cabling systems would appear to be the optimal solution because copper cabling is a convenient and cost effective solution, which enables power to be cost-effectively provided to a device via PoE. And, by avoiding the need for sub-distributors and media converters, this solution also has the advantage of reducing the amount of technical space needed for converged cabling.

Long reach copper cables

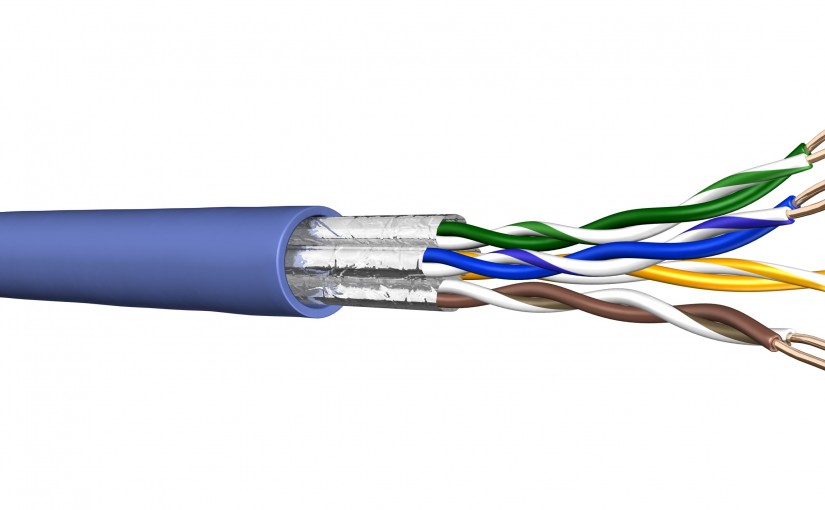

Cable and systems specialist Draka has introduced UC LR22 10Gbit U/FTP, a new compact cable which will help designers and installers power remote devices with ease. The shielded twisted pair cable is constructed from American Wire Gauge 22 copper core. It has an outside diameter of 8.2mm and is fabricated from low smoke halogen free (LSHF) materials and it has been optimised for PoE+/next gen PoE.

It meets all the requirements of the Ethernet standard IEEE 802.3 and ISO/IEC 11801 standards for 10GBase-T, PoE, PoE+ and a Class EA channel up to a length of 120m providing it has been installed with UC-Connect components and patch cables.

This unique cable allows the installed cable length to be longer while using the same installation practices as standard cabling solutions for peace of mind for installers and specifiers.

Because many applications supported by this extended cable are located outdoors, such as IP cameras, access controls and alike, the cable is also available in an outdoor version too.

Standard compliant solution

In the first edition of ISO/IEC11801 a larger planning reach for services in Classes A, B or C has been part of the cabling scheme. Its logic was based on the fact a higher performing cabling can run longer distances with less demanding applications. This appeared to be forgotten in later editions of the cabling standard, although it still holds true. And, with applications located on the perimeter of LAN coverage, this fact regains importance.

Since length is only an informative measurement value and not a pass or fail criteria, testing an installed link is easy. Meters always show ‘Pass’ or ‘I’ (Only Informative Value) whatever the length. Within the ISO/IEC and CENLEC standards there is no length restriction for the transmission classes. What really matters is the end-to-end performance of the link and the LR-cable ensures increased compliance thanks to its better reach capabilities.

Since some BMS devices run at limited data rates of 100Mb/s or even less, the LR cable offers even larger link extensions. Autonegotiation of speed levels, in which two connected Ethernet devices choose the highest transmission mode they both support, makes administration easy and allows runs to remote devices at distances up to 180m.

The LR cabling approach is fully standard compliant. It enables the cost-efficient use of existing LAN infrastructure for increasingly important building management systems. It can easily be embedded in existing LAN cabling systems where it works as well as installing a new installation from scratch.

Range Overview

Source: Technical MMS UK
