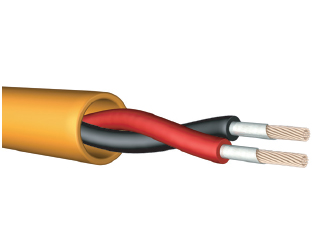

Max FOH™ Flexible PAGA & Control Cable
Public Address General Alarm, Data Control Cable, Fire Resistance
| Fire Characteristics | |
|---|---|
| 1.5mm² Core | Grade A Copper specially protected by fire barrier tape to ensure circuit |
| integrity in fire situations. | |
| Construction | Twisted pair for better signal transmission |
| Core Insulation | High temperature resistance PE |
| Outer Sheath | LSZH in accordance to IEC 61034, IEC 60754-1 & 2. |
| Main Characteristics | ||
|---|---|---|
| Nominal overall diameter | mm | 8.0 (±0.5) |
| Nominal weight (completed cable) | Kg/km | 66 |
| Min bending radius | mm | 60 |
| Max pulling tension | kgf | 21 |
| Max conductor resistance @ 20°C | Ω/km | 12.1 |
| Min insulation resistance @ 20°C | MΩ/km | 2000 |
| Dielectric withstand test | kV/min | 1/1 |
| Technical Details | ||
|---|---|---|
| Size | - | 2C x 1.5mm2 |
| Specification reference | - | IEC 60332-1, IEC 60331, SS299 / BS 6387 CWZ |
| Conductor material | mm | Plain annealed copper wire to IEC |
| Max operating temperature | °C | 90 |
| No of Wire / Wire Diameter | mm | 7 / 0.53 |
| Conductor shape | - | Circular stranded |
| Insulation | - | Cross-linked PE, XLPE |
| Insulation thickness | mm | 0.5 |
| Core Colour | mm | Black & White OR Black & Red |
Application
- Most widely used fire resistance speaker & Audio/Motor control cables, which is highly flexible due to the unique tubing design. Draka MAX - FOH™ flexible speaker cables meets the stringent BS 6387 fire performance standards and can be used in all critical Public Address General Alarm Systems.
Fire Rating
- Generally to :ISO/IEC 11801:95, IEC 61156, EN 50173:95; EN 50288-1,BS 6387
Optional:
- Steel Wire Braid
- Up to 4 pair × 4 mm2
| Ordering Information | ||
|---|---|---|
| P/N | Product Description | P.U |
| PAGA1P15 | 1P x 1.5mm², PAGA, LSZH | 500m/drum |
| PAGA2P15 | 2P x 1.5mm², PAGA, LSZH | 500m/drum |
| PAGA1P25 | 1P x 2.5mm², PAGA, LSZH | 500m/drum |
| PAGA2P25 | 2P x 2.5mm², PAGA, LSZH | 500m/drum |
