LTFMSMNWM
Heavy Armoured Cable Nylon + LSZH Sheath, Chemical/Corrosive Resistant

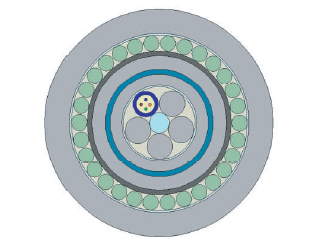

Features
- Central Strength Member(CSM): glass fiber reainforced plastic rod(FRP),with plastic overheating when needed.
- Tube: thermoplastic material containing up to 12 optical fibres and filled with a suitable water tightness compound.
- Stranding:The required numbers of elements (tubes or fillers) are SZ stranded around the central strength member.
- Core Wrapping: polyester tape (jelly filled)
- Inner sheath:MDPE (P) or LSZH (M)
- Inner Armour:Corrugated steel tape
- Middle sheath: HDPE (P) or LSZH (M)
- Nylon sheath: Black Nylon Polyamide 12 (PA 12)
- Outer Armour:Galvanized steel wire. WB jelly filled
- Outer Sheath:LSZH flame retardant to IEC 60332 – 24
| Technical Data | ||||||
|---|---|---|---|---|---|---|
| No.of Flbres | 2, 4, 8 | 6, 12 | 24,36,48 | 72 | 96 | |
| Number of fibres per tube | 5×4 | 5×6 | 5×12 | 5×12 | 8×12 | |
| Loose Tube- Ø | mm | 2.0 nominal | 2.0 nominal | 2.0 nominal | ||
| CSM/sheath diameter | mm | 1.5 nominal | 2.2 nominal | 2.0/3.5 nominal | ||
| Inner sheath thickness | mm | 0.8 nominal | 0.8 nominal | 0.8 nominal | ||
| Middle sheath thickness | mm | 1.0 nominal | 1.0 nominal | 1.0 nominal | ||
| Nylon sheath thickness | mm | 0.4 nominal | 0.4 nominal | 0.4 nominal | ||
| Galvanized steel wire | mm | 1.0 nominal | 1.0 nominal | 1.25 nominal | ||
| Outer sheath thickness | mm | 1.9 nominal | 1.9 nominal | 1.9 nominal | ||
| Cable Diameter | mm | 17.9 nominal | 18.6 nominal | 20.4 nominal | ||
| Cable Weight | Kg.Km | 523 | 523 | 709 | ||
| Max installation tension | N | 6000 | ||||
| Min. bending radius | mm | Without Tension 15 × Cable- Ф | Under Maximum Tension 25 × Cable- Ф | |||
| Temperature range | ◦C | Installation -5->+50; | Transport & Storage -40->+70; | Transport & Storage -40->+70; | ||
Application
This cable is especially designed for harsh environments. The double armour combination of corrugated steel tape and galvanized steel provide superior crush protection to the fibers . The nylon inner sheath provides anti-termite protection and the galvanized steel wire outer sheath provides anti-rodent protection. Water tightness compound within loose tube reinforced by polyster tape and jelly protects the fibers against chemical ,corrosion and moisture.Fire Rating
- IEC 60332-1,IEC 60332-24,IEC 61034-2,IEC 60754-1/2
| Main Characteristics | |||
|---|---|---|---|
| Test | Standard | Specified value | Acceptance Criteria* |
| Max. installation tension | IEC 60794-1-2-E1 | 6000N | No visible fibre strain, ∆α ≤ 0.05 dB |
| Crush | IEC 60794-1-2-E3 | 4000N/100mm | ∆α≤ 0.3 dB(MM), 0.05 dB (SM) |
| Impact | IEC 60794-1-2-E3 | 30 Nm, 3 impacts, R = 300 mm | ∆α≤ 0.3 dB(MM), 0.05 dB (SM) |
| Temperature Cycling | IEC 60794-1-2-F1 | -30 -> + 70◦C | ∆α≤ 0.3 dB/km(MM), 0.05 dB /km(SM) |
| Water penetration | IEC 60794-1-2-F5B | sample=3m, water=1m | No water leakage after 24 hour |
| Ordering Information | ||
|---|---|---|
| UCFIBRE™ LTFMSMNWM SERIES FO Cable part numbers are made up using the table below. The part number always starts with the letters LTFMSMNWM to denote that it is a UCFIBRE™ LTFMSMNWM SERIES FO Cable. This is followed by 3 numbers which symbolises the core quantity and then 2 letters to denote the fibre type. Example of a UCFIBRE™ LTFMSMNWM SERIES FO Cable part number: LTFMSMNWM008M1 The above example describes an OM1 (62.5um, Orange Sheath) UCFIBRE™ LTFMSMNWM SERIES FO Cable, with 8 cores. | ||
| LTFMSMNWM SERIES | Core quantity | FIBER TYPE |
| LTFMSMNWM | XXX | XX |
|---|---|---|
|
002 - 2 CORES 024 - 24 CORES
004 - 4 CORES 036 - 36 CORES
006 - 6 CORES 048 - 48 CORES
008 - 8 CORES 072 - 72 CORES
012 - 12 CORES 096 - 96 CORES |
SM - SINGLEMODE, G652D, 9um (yellow sheath) M1 - OM1, 62.5um (orange sheath) M2 - OM2, 50um (orange sheath) M3 - OM3, 50um (aqua sheath) M4 - OM4, 50um (aqua sheath) |
