LONAK® 2x2x0.65
Building automation cable
Application
- Fixed indoor installations
- LON cabling
- Building automation
Fire Rating
- IEC 60332-1

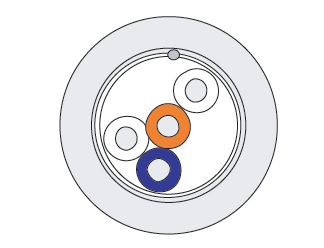

| Construction | |
|---|---|
| Conductor | Copper wire, tinned 0.34 mm2 , Ø 0.65 mm |
| Insulation | PE, 1.55 mm Ø |
| Conductor identification | Pair 1: white, blue, Pair 2: white, orange |
| Stranding | 2 conductors to the pair |
| Cable lay up | 2 pair to the core |
| Wrapping | 1 x PET foil |
| Overall shielding | Laminated AL-foil + copper drain wire |
| Rip cord and identification thread | yes |
| Outer sheath | PVC, grey RAL 7035, Ø 7.1 mm |
| Outer Diameter | Nom. 7.1 mm |
| Weight | Nom. 43 kg/km |
| Mechanical properties | |
|---|---|
| Operating temperature | - 30°C to + 70°C |
| Min. Installation temperature | - 5°C |
| Minimum bending radius | 10 x D |
| Minimum bending radius (during pulling) | 15 x D |
| Maximum pulling force | 65 N |
| Electrical properties at 20°C | |
|---|---|
| Loop DC resistance (max.) | 106 Ω/km |
| Insulation resistance (at 500 V, 1 min.) | 100 MΩ*km |
| Mutual capacitance at 800 Hz (max.) | 49 nF/km |
| Velocity factor | 0.67 |
| Resistance unbalance (max.)e | 3 % |
| Capacitance unbalance (max.) | 1600 pF/m |
| Max. operating voltage DC | 75 V |
| Test voltage conductor/conductor | 2 kV DC, 1 min |
| Test voltage conductor/screen | 2 kV DC, 1 min. |
| Ordering Information | |||
|---|---|---|---|
| P/N | Product Description | P.U | |
| 1003579 CS2638100 L432911 | 2x2x0.65 mm, Building automation cable, LONAK® 2x2x0.65 | 1000m/drum | |
