LMNWG

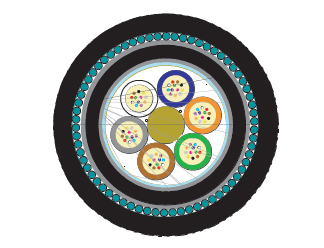

Steel Wire Armoured ALPA™ Optical Cable
Features
- Central Strength Member(CSM): glass fiber reainforced plastic rod(FRP),with plastic overheating when needed.
- Loose Tube: The secondary coating consists of a loose tube made of thermoplastics polyester. Each fiber in a tube is uniquely identified by a different colour.
- Filler Elements:thermoplastic rods,where needed.
- Stranding:Loose tubes(and fillers), SZ Stranded around the CSM.
- Cable core: the cable core is covered with water blocking swellable tape.
- Aramid yarns:are applied to give extra tensile performance.
- Moisture Barrier:The cable is completely covered with aluminum foil applied longitudinally with an overlap. The aluminum foil is bonded to the inner sheath.
- 1st inner sheath: The 1st inner sheath consists of HDPE
- 2nd inner sheath: The 2nd inner sheath consists of PA
- Armour:The armour consists of one layer of galvanized steel wire(SWA) with a counter spiral binder.
- Outer sheath:Flame Retardant low Smoke, Zero Halogen compound. This compound is UV, Heat & Oil resistant.
| Technical Data | ||||||
|---|---|---|---|---|---|---|
| No.of Flbres | 12 | 24 | 48 | 72 | 120 | |
| Number of tubes/ Fllers | 2/4 | 4/2 | 4/2 | 4/2 | 10/0 | |
| Number of flbres per tube | mm | 6 | 12 | |||
| Loose Tube-Ø | mm | 2.1 | 2.4 | |||
| Central strength member | mm | 2.3 | 2.6 | 3.0/5.8 | ||
| 1st inner sheath thickness | mm | 1.0 | ||||
| 2nd inner sheath thickness | mm | 0.5 | ||||
| Dia over 3nd inner sheath | mm | 10.8 | 11.7 | 14.8 | ||
| Steel wire thickness | mm | 1.0 | ||||
| Sheath thickness | mm | 2.0 | ||||
| Cable Dlameter | mm | 16.8 | 17.7 | 20.8 | ||
| Cable Weight | Kg.Km | 465 | 510 | 665 | ||
Application
- The cable is especially designed for harsh environments.The multi - layer inner sheath system ALPA: Aluminium/HDPE/PA(nylon) withstands aggressive constituents and fluids that might occur on(petro) chemical plants. (chemical moisture - barrier). The steel wire armour and FR LSZH sheath make the cable suitable for installation under and above ground. - The ALPA design provides anti-termite protection. -The Steel Wire Armour provides rodent protection.
Fire Rating
- IEC 60332-1 IEC 60332 - 3 - 22
| Main Characteristics | |||
|---|---|---|---|
| Test | Standard | Specified value | Acceptance Criteria* |
| Max. Tension | IEC60794-1-1E1 | 7000N | ∆α≤0.05 dB(MM).no fiber strain |
| Crush | IEC60794-1-1E3 | 4000N/100mm,short term | ∆α reversible |
| Impact | IEC60794-1-1E4 | 30Nm,R=200mm,3impacts | ∆α≤0.10 dB(MM).no damages |
| Repeated bending | IEC60794-1-1E6 | R=20×cableØ, 100 cycle | ∆α≤0.10 dB(MM).no damages |
| Cable bend | IEC60794-1-1E11 | R=15×cableØ, 5 turns,3cycles | ∆α≤0.10 dB(MM).no damages |
| Tension | IEC60794-1-1E7 | ±180◦,L=1m,10cycles | No damages |
| Water penetration | IEC60794-1-1E5B | Sample=3m,water=1m | No water leakages after 24hours, up to inner sheath |
| UV resistancy | ISO 4892-2 | - | In ISO |
| Halogen free | IEC 60754-1 IEC 60811 | Amount of halogen acid pH value | In IEC |
| Heat & oil resistancy | - | IRM902; 4hours, 70°C | In IEC |
| Flame retardancy Single cable testBundle cable test | IEC 60332-1 IEC 60332-3-22(Cat A) | Reduced flame propagation | |
| Resistance to nitric acid | Draka-Kema | 7 mol/I,6weeks | No damage to capital fibers |
| Resistance to hydrocarbon mixture | Draka-Kema | Metyl-etyl-keton, trichloro-ethene, cyclo-hexane,heptane,toluene | No damage to optical fibers |
| Min.bending radius | mm | Without Tension 15×cable-Ø | Under Maximum Tension 25×cable-Ø | |
| Temperature range | ◦C | Installation-10 to +50 | Transport & Storage-30 to +70 | Operation-30 to +70 |
| Ordering Information | ||
|---|---|---|
| LMNWG SERIES FO Cable part numbers are made up usaing the table below. The part number always starts with the letters LMNWG to denote that it is a LMNWG SERIES FO Cable. This is followed by 3 numbers which symbollses the core quantity and then 2 letters to denote the fiber type.Example of a LMNWG SERIES FO Cable part number: LMNWG024M1 The above example describes an OM1(62.5um, Orange sheath) LMNWG SERISE FO Cable, with 24 core. | ||
| LMNWG SERIES | Core quantity | FIBER TYPE |
| LMNWG | XXX | XX |
|---|---|---|
|
012-12 Cores
024-24 Cores
048-48 Cores
072-72 Cores
120-120 Cores |
SM-SINGLEMODE,G652D,9um(yellow sheath) M1-OM1, 62.5um(orange sheath) M2-OM2,50um(orange sheath) M3-OM3,50um(aqua sheath) M4-OM4,50um(aqua sheath) |
