Li-09YS(St)C11Y 2 x 0.35 mm² LSZH
CanBus-Cable

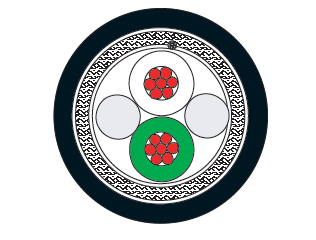

| Construction | |
|---|---|
| Conductor | stranded bare copper wire, diameter 7 x 0.26 mm Φ 0.78 mm (cross section 0.35 mm²) |
| Insulation | Foam-Skin PP, Φ 2.2 ± 0.1 mm wall thickness 0.71 mm |
| Twisting | 2 cores + 2 x PP-fillers twisted to the pair Φ 4.4 mm |
| Core identification | 1x white, 1x green |
| Overall screen | 1 x PET-Al-foil + Φ 4.6 mm tinned stranded drain wires 19 x 0,15 mm + tinned copper braid Φ 5.2 mm optical coverage ≥ 65% |
| Foil | 1 x PET-foil under sheath Φ 5.3 mm |
| Sheath | PUR Low Smoke Zero Halogen Φ 6.8 ± 0.2 mm wall thickness 0.75 mm |
| Sheath colour | Black, RAL 9005 |
| Outer Diameter | Nom. 6.8 mm |
| Weight | Nom. 46.7 kg/km |
| Tensile force N | 165 |
| Mechanical properties | |
|---|---|
| Bending radius during installation - without load - with load | ≥ 5 x cable diameter ≥ 10 x cable diameter |
| Operating temperature | - 30°C up to + 70°C |
| Storage temperature | -40°C up to 85°C |
| UV resistance of sheath material | acc. to IEC60068-2-5 |
| Ozone resistance | acc. to EN 60811-2-1, clause 8 |
| Smoke density | acc. to EN 50268-2, IEC61034-1 and 2 |
| Corrosivity | acc. EN 50267-1 and 2, IEC 60754-1 and 2 |
| Testing of oil resistance of PU sheath material acc. to VDE 0282 Part 10 and EN 60811-2-1 and thermal endurance graph (Arrhenius) and life expectancy of PU sheath material acc. to ISO 2578 Requirements after aging: max. change of tensile strength: -50% max. change of elongation at break: -50% Mobil DTE 13 M (Hydraulic oil) Tribol 1710/20 (Gear oil) | 150 days at 100°C approx. 24 years at 65°C ≥ 25 years at 20°C 140 days at 100°C approx. 18 years at 65°C ≥ 25 years at 20°C |
| Electrical properties at 20°C | |
|---|---|
| Conductor resistance (at 20 ± 5 °C) | ≤ 54.5 Ω/km |
| Characteristic impedance at 1 MHz | 120 Ω ± 15% |
| Insulation resistance (at 20 ± 5 °C and 500 V) | ≥ 10 GΩxkm |
| Operating voltage (50 Hz, rms) | 60 V |
| Test voltage (AC, 1 min) Core/core and core/screen | 1.2 kV |
| Transfer impedance (up to 10 MHz, acc. to IEC 62153-4-3) | ≤ 10 mΩ/m |
Application
- The following CanBus cable is suitable for transmission of CanBus signals according to DIN19245 and EN 50170
- The following CanBus cable is suitable for transmission of CanBus signals according to ISO 11898 - 2
- The cable is suited for fixed indoor and outdoor installation and under certain conditions also for mobile use.
- The cable is halogen free,flame retardant and oil resistant. The sheath material is tested in Hydraulic oil.
- ARAL VITAM 32, Mobil DTE 13M, Gear oil ARAL DEGOL BG Plus 320 and Tribol 1710/320
Standards
acc. To customer SpecificationFlame resistance
- IEC 60332 - 1,IEC -61034-2,IEC 60754 - 1 /2
| Ordering Information | |||
|---|---|---|---|
| P/N | Product Description | P.U | |
| 1003011 CS2875900 | CanBus-Cable, Li-09YS(St)C11Y 2 x 0.35 mm² LSZH | 1000m/drum | |
