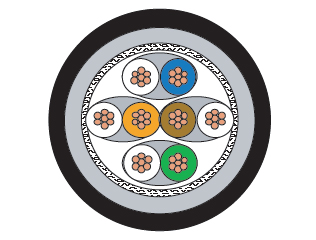

IE ToughCat 5e LSHF-FR MUD
S/FTP Installation Cable 4x2xAWG24/7 for tougher environments
Application
- Generic Data transmission. This Cat5e S/FTP cable is based on our DNV and Llyod Register certified ToughCat,but with an additional fire retardant,halogen-free,low smoke MUD protecting outer jacket.This cable is meant for use as installation/horizontal cable in tougher electrical and mechanical environment,including ships and offshore units.
Standards
- EN50173-1,EN50288-4-1
- ISO/IEC 11801,IEC61156-5
Fire Rating
- MUD protecting outer sheath: IEC60754-2;IEC 61034,IEC 60332-3-24
- Inner Sheath: IEC 60332-1, IEC 60332-3-24,IEC 61034 -2, IEC 60754 - 1 / 2
Chemical Resistance
- Mineral oils IRM902(IEC 60811-2-1): 7 DAYS/100◦C
- Diesel - IRM 903(IEC60811-2-1): 7 days/100◦C
| Construction | |
|---|---|
| Conductor | Stranded copper wire, cross section 0.22 mm² (AWG24/7) |
| Insulation | PE, Ø 1.4 mm |
| Twisting | 2 cores to the pair |
| Cable lay up | 4 pairs |
| Pair screen | Al-laminated plastic foil around each pair |
| Overall screen | Copper braid, tinned Ø 6.2 mm |
| Inner Sheath | Oil resistant, Fire retardant and halogen free LSZH-FR (SHF1), diameter 7.7 mm |
| Colour | Grey RAL 7035 |
| Outer sheath | MUD protecting, diameter 9.5 mm |
| Colour | Grey RAL 7035 |
| Outer Diameter | Nom. 9.5 mm |
| Weight | Nom. 100 kg/km |
| Tensile force N | 100 |
| Mechanical properties | ||
|---|---|---|
| Bending radius | Without load | 8 X D |
| With load | 4 x D | |
| Temperature range | During operation | -40°C to + 85°C |
| During installation | -15°C to + 50°C | |
| Fire load | 4 pair | (on request) MJ/km |
| Maximum tensile load | During operation | No load |
| During installation | 100 N | |
| Electrical properties at 20°C± 5°C | ||
|---|---|---|
| DC Loop resistance | - | ≤ 158 Ω/km |
| Resistance unbalance | - | ≤ 2% |
| Insulation resistance | (500 V) | ≥ 5000 MΩ*km |
| Capacitance | at 800 Hz | Nom. 43 nF/km |
| Capacitance unbalance | (pair to ground) | ≤ 1500 pF/km |
| Mean Characteristic impedance | @ 100 MHz | 100 ± 5 Ω |
| Nominal velocity of propagation | - | 0.75c |
| Propagation delay | - | ≤ 450 ns/100 m |
| Delay skew | - | ≤ 15 ns/100 m |
| Transfer impedance | at 1 MHz | ≤ 10 mΩ /m |
| at 10 MHz | ≤ 8 mΩ /m | |
| at 30 MHz | ≤ 10 mΩ /m | |
| Delay skew | - | ≥ 85 dB |
| Electrical Transmission Characteristics at 20°C | ||||||||
|---|---|---|---|---|---|---|---|---|
| F | Attenuation | NEXT | ACR | Return loss | PS-NEXT | PS-ACR | EL-FEXT | PS-ELFEXT |
| (MHZ) | (dB/100m) | (dB) | (dB/100m) | (dB) | (dB) | (dB/100m) | (dB/100m) | (dB/100m) |
| 1 | 2.1 | 90 | 88 | - | 87 | 85 | 85 | 82 |
| 4 | 4.0 | 90 | 86 | 27 | 87 | 83 | 85 | 82 |
| 10 | 6.3 | 90 | 84 | 30 | 87 | 81 | 79 | 76 |
| 16 | 8.0 | 90 | 82 | 30 | 87 | 78 | 73 | 70 |
| 20 | 9.0 | 90 | 81 | 30 | 87 | 78 | 73 | 70 |
| 31.25 | 11.4 | 90 | 79 | 30 | 87 | 76 | 69 | 66 |
| 62.50 | 16.5 | 86 | 70 | 30 | 83 | 67 | 63 | 60 |
| 100 | 21.3 | 83 | 62 | 30 | 80 | 59 | 59 | 56 |
| 155 | 24.2 | 81 | 57 | 26 | 78 | 54 | 57 | 54 |
| 200 | 31.5 | 78 | 47 | 25 | 75 | 44 | 53 | 50 |
| 250 | 35.8 | 77 | 41 | 25 | 74 | 38 | 51 | 48 |
| 300 | 47.1 | 73 | 26 | 23 | 70 | 23 | 47 | 44 |
| 600 | 60.1 | 71 | 11 | 20 | 68 | 8 | 44 | 41 |
| Ordering Information | |||
|---|---|---|---|
| P/N | Product Description | P.U | |
| 60015703 | S/FTP Installation Cable 4x2xAWG24/7 for tougher environments, IE ToughCat 5e LSHF-FR MUD | 500m/drum | |
| 60015701 | S/FTP Installation Cable 4x2xAWG24/7 for tougher environments, IE ToughCat 5e LSHF-FR MUD | 1000m/drum | |
