IE Firetuf™ DATA 1P, 2P or 4P LSZH-FR
IE SF/UTP 4x2xAWG22/1 cable with circuit integrity behaviour
Application
- Primär(Campus), Sekundär(Riser), Tertiär(Horizontal)
- IEEE 802.3: 10 Base-T;100 Base - T;
- IEEE 802.5 16 MB;ISDN; TP DDI; ATM
- RS485(10Mbits)
- Circuit integrity structured wiring alarm cable,compatible with all known connection systems to EN 50173, part of intelligent building technology
Standards
- Generally to: ISO/IEC 11801:95, IEC 61156; EN50173:95; EN50288 - 1
Fire Rating
- IEC 60332-1,IEC 60754 - 1 & 2, IEC 61034 - 2, IEC60332-3-24, UL 1581 VW1, BS5839-1(clause 26.2e), BS8434 - 2, BSEN 50200, BS4066 part 3, BSEN20568, IEC60332 - 3 -24,EN50399
Certification
- Approved to LUL - Fire resistant BS5839 - 1 (clause 26.2e); BS8434 - 2;BSEN 50200
- Flame retardant BS4066 part 3 ; Smoke emission BSEN20568
- LUL - Flammability,smoke & fume 2-01001-002
- LUL STANDARD e4156 part 1 - approved
| Construction | |
|---|---|
| Conductor | bare copper wire, Ø 0.65 mm (AWG 22) |
| Insulation | PE/Sil Rbr, Ø 1.7 mm |
| Twisting | 2 cores to the pair |
| Cable lay up | 1, 2 or 4 pairs to the core |
| Fire protection wrapping | glass tape |
| Screen | copper braid, tinned |
| Sheath | halogen free, flame retardant thermoplastic sheathing compound acc. to EN 50290-2-27, Ø 10.5 mm |
| Colour | red RAL 3000 |
| Outer Diameter | Nom. 6.8(1 Pair) – 10.5 (4 Pair) mm |
| Weight | Nom. 48(1 Pair) – 122 (4 Pair) kg/km |
| Tensile force N | 100 |
| Mechanical Properties | ||
|---|---|---|
| Bending radius | without load | ≥ 42 mm |
| with load | ≥ 84 mm | |
| Temperature range | during operation | -20°C to + 60°C |
| during installation | 0°C to + 50°C | |
| Fire Tests BC 5839: 2002 & IEC60331 | |
|---|---|
| BS5839 enhanced 3 in 1 | passed |
| Continued Data Operation @ 950° | > 2 Hours |
| BS6387 | > 3 Hours |
| BS EN 50200 (IEC60331) | > 3 Hours |
| Electrical Properties at 20°C ± 5°C | ||
|---|---|---|
| Loop resistance | - | ≤ 110 Ω/km |
| Resistance unbalance | - | ≤ 2% |
| Insulation resistance | (500 V) 1 minute | ≥ 2000 MΩ*km |
| Mutual capacitance | at 800 Hz | Nom. 60 nF/km |
| Capacitance unbalance | (pair/ground) | ≤ 1600 pF/km |
| Characteristic impedance | (at 10) MHz | (100 ± 15) Ω |
| Nominal velocity of propagation | - | ca. 57 % |
| Test voltage | (DC, 1 min) core/core and core/screen | 1000 V |
| Transfer Impedance | at 10 MHz | 5 mΩ/m |

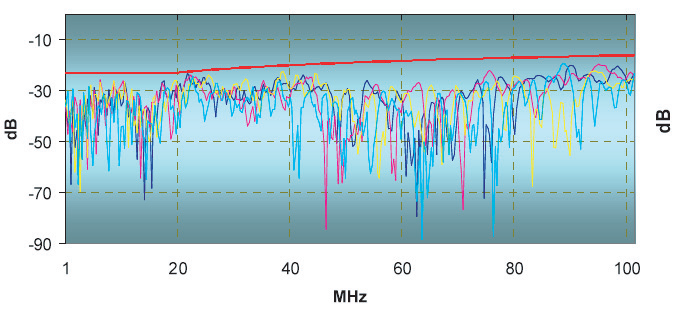

| Electrical Data (Nominal) acc. to Cat.5 (at 20°C) |
|---|
 |
| Ordering Information | ||
|---|---|---|
| P/N | Product Description | P.U |
| 1010853 | J-2Y/2G(St)CH 4x2x0.65 -100, IE SF/UTP 4x2xAWG22/1 cable with circuit integrity behaviour, IE FIRETUF DATA 1P, 2P or 4P LSZH-FR | 500m/drum |
| 1010851 | J-2Y/2G(St)CH 1x2x0.65 -100 , IE SF/UTP 4x2xAWG22/1 cable with circuit integrity behaviour, IE FIRETUF DATA 1P, 2P or 4P LSZH-FR | 500m/drum |
| 1010852 | J-2Y/2G(St)CH 2x2x0.65 -100, IE SF/UTP 4x2xAWG22/1 cable with circuit integrity behaviour, IE FIRETUF DATA 1P, 2P or 4P LSZH-FR | 500m/drum |
