FF FC 1x2xAWG18/1 GST PVC
FOUNDATION Fieldbus FC Galvanized Steel Tape Armoured PVC Installation Cable

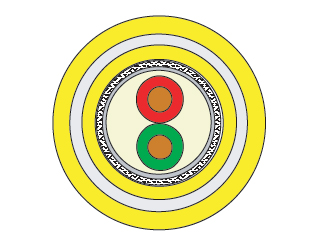

| Construction | |
|---|---|
| Conductor | bare copper wire, Φ 1.05 mm, (cross-section AWG18) |
| Insulation | foam-skin-PE, Φ 2.55 mm |
| Stranding | two cores gn / rd to the Pair |
| Bedding | PVC, filling the interstices |
| Static screen | PET-Al-Foil longitudinally applied |
| Braid | tinned copper braid, coverage approx. 70% |
| Sheath | PVC, Φ 8.0 mm |
| Colour | yellow |
| Wrapping | PP foil overlapping, Φ 8.2 mm |
| Armouring | 2 galvanized steel tapes, thickness of tapes 0.10 mm, Φ 9.0 mm |
| Outer sheath | PVC, Φ 12.0 mm |
| Sheath colour | yellow |
| Outer Diameter | Nom. 12.0 mm |
| Weight | Nom. 193 kg/km |
| Tensile force N | 175 |
| Mechanical properties | |
|---|---|
| Bending radius | |
| Single bending | ≥ 40 mm |
| Repeated bending | ≥ 180 mm |
| Temperature range | - 40°C to + 70°C |
| Transport and storage | - 40°C to + 70°C |
| Installation | - 5°C to + 50°C |
| Electrical properties at 20°C | |
|---|---|
| Loop resistance | ≤ 46 Ω/km |
| Screen resistance nominal | 12 Ω/km |
| Characteristic impedance (at 31.25 kHz) | 100 Ω ± 20 Ω |
| Mutual capacitance (at 1 kHz) | approx. 60 nF/km |
| Capacitance unbalance to earth max. | 2 nF/km |
| Insulation resistance | ≥ 5 GΩkm |
| Test Voltage (DC, 1 min) Core/Core and Core/Screen | 1 kV |
| Operating voltage (RMS) | ≤ 100 V |
| Inductance (nominal) | 0.70 mH/km |
Application
Spur and trunk cable for fixed installation indoor and outdoor on racks in conduits, Fast connect – Assembly - UV resistant - Silicon free - Oil and grease resistantStandards
- IEC 61158 and IEC 61784
- Cable Type A acc. to FOUNDATION Fieldbus
Fire Rating
- IEC 60332-1
| Electrical Data at 20°C | |||
|---|---|---|---|
| Frequency (kHz) | Impedance (Ohm) | Attenuation (dB/100m) | Propagation delay change (μs/km) |
| 7.9-39 | - | - | ≤ 1.7 |
| 31.25 | 100 ± 20 | - | - |
| 39 | - | ≤ 0.3 | - |
| Ordering Information | |||
|---|---|---|---|
| P/N | Product Description | P.U | |
| 1025043 | FOUNDATION Fieldbus FC Galvanized Steel Tape Armoured PVC Installation Cable,FF FC 1x2xAWG18/1 GST PVC | 1000m/drum | |
