EIB – BUS, PVC
EIB Bus Cable
Symmetrical data cable for EIB – BUS Systems
Application

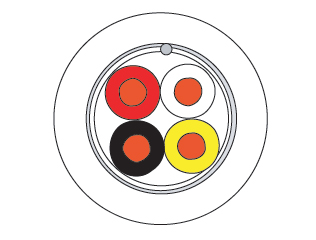

Bus cable for indoor installations in EIB (European Installation Bus) systems. The cable is suitable for installation in ducts, on risers and under data floors. PE insulated plain copper conductors. The cable has an overall Al/PETP-foil screen and a tinned copper drain wire. The overall sheath is made of flame retardant PVC. The pair is colour coded for easy identification. 1 pair: black/red 2 pair: yellow/whiteFire Rating
- IEC 60332-1
| Construction | |
|---|---|
| Conductor | Copper wire, bare 0.5 mm2, 0.80 mm Ø |
| Insulation | PE, 1.6 mm Ø |
| Core identification | Pair 1: red, black, Pair 2: Yellow, white |
| Pair stranding | 2 conductors to the pair |
| Cable lay up | 1 or 2 pairs to the core |
| Wrapping | 1 x PET foil |
| Overall shielding | Laminated AL-foil + copper drain wire 0.4mm2 |
| Rip cord and identification thread | yes |
| Outer Sheath | PVC, alternative LSFROH, white RAL 9010 / green RAL 6018 |
| Outer Diameter | Nom. 5.5 - 7.5 mm |
| Weight | Nom. 35 - 60 kg/km |
| Mechanical properties | |
|---|---|
| Operating temperature | - 25°C up to + 70°C |
| Min. Installation temperature | - 5°C |
| Minimum bending radius | 7.5 x D |
| Smoke density (only for LSFROH types) | acc. to IEC 61034-2 |
| Corrosivity of fire gases (only for LSZH types) | acc. to IEC 60754-1/2 |
| Electrical properties at 20°C | |
|---|---|
| Loop DC resistance (max.) | 73.2 Ω/km |
| Insulation resistance (at 500 V, 1 min.) | 10 GΩ*km |
| Mutual capacitance at 800 Hz (max.) | 100 nF/km |
| Inductance | 0.65 mH/km |
| Max. operating voltage DC | 800 V |
| AC Testvoltage, (5 min) | 2500 V |
| AC Testvoltage, (1 min) | 4000 V |
| Ordering Information | |||
|---|---|---|---|
| P/N | Product Description | P.U | |
| 1003582 | EIB BUS Cable PVC, 1x2x0.8 | 1000m/drum | |
| 1003583 | EIB BUS Cable PVC, 2x2x0.8 | 1000m/drum | |
| 1003584 | EIB BUS Cable LSFROH, 1x2x0.8 | 1000m/drum | |
| 1003585 | EIB BUS Cable LSFROH, 2x2x0.8 | 1000m/drum | |
| 1021615 | EIB BUS Cable LSFROH GN, 2x2x0.8 | 1000m/drum | |
