EIA-485 22 & 24AWG LSZH
Serial Data Communication Cable
Application
- For multidropped,medium-speed,serial data communication in electrically noisy industrial environments. Application includes industrial networks using RS-485/RS - 422 transceivers: - RS-422 systems for Process Automation(chemicals,brewing,paper mills), factory automation(autos, metal fabrication), HVAC,security,motor control and motion control.
Fire Rating
- IEC 60332 - 1, IEC 61034 - 2,IEC 60754 - 1 / 2
Optional
- PVC/PE

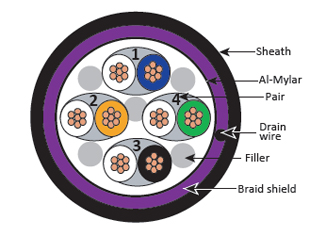

| Construction | |
|---|---|
| Conductor | Stranded Tinned Copper |
| Insulation | HD-PE |
| Colour | Pair 1: 1 x white, 1 x blue Pair 2: 1 x white, 1 x orange Pair 3: 1 x white, 1 x black Pair 4: 1 x white, 1 x green |
| Inner Screen | 1 x AL-Polyester Wrap, overlapping >= 25 % |
| Drain Wire | Stranded Tinned Copper |
| Braid Shield | Tinned copper |
| Braid Shield Coverage | ≥85% |
| Sheath | LSZH |
| Sheath colour | Black |
| AWG / Pair | 22 / 1P | 22 / 2P | 22 / 3P | 22 / 4P | 24 / 1P | 24 / 2P | 24 / 3P | 24 / 4P |
| Conductor Ø mm | 0.77 | 0.61 | ||||||
| Insulation Ø mm | 2.0 ± 0.2 | 1.8 ± 0.08 | ||||||
| Drain wire Ø mm | 7 *0.254 | 7 *0.254 | ||||||
| Braid shield | 16*8* 0.12mm | 16*10* 0.12mm | 16*13* 0.12mm | 16*15* 0.12mm | 16*7* 0.12mm | 16*8* 0.12mm | 16*12* 0.12mm | 16*13* 0.12mm |
| Sheath Ø mm | 6.5 | 8.2 | 9.5 | 11.0 | 6.3 | 8.0 | 9.2 | 10.2 |
| Electrical properties at 20°C | ||||||||
|---|---|---|---|---|---|---|---|---|
| AWG / Pair | 22 / 1P | 22 / 2P | 22 / 3P | 22 / 4P | 24 / 1P | 24 / 2P | 24 / 3P | 24 / 4P |
| Conductor resistance | ≤ 59 Ω/km | ≤ 94.2 Ω/km | ||||||
| Rated Voltage | 300 V | |||||||
| Mechanical properties | ||||||||
|---|---|---|---|---|---|---|---|---|
| AWG / Pair | 22 / 1P | 22 / 2P | 22 / 3P | 22 / 4P | 24 / 1P | 24 / 2P | 24 / 3P | 24 / 4P |
| Rated temperature | +80°C | |||||||
| Ordering Information |
|---|
| EIA 485 22 & 24 AWG part numbers are made up using the table below.The part number starts with 48 to denote that it is an EIA-485 cable. The following number shows the number of pairing and the last 2 numbers signifies the AWG. Any letter behind would describe the sheath type.Example of an EIA-485 part number – 48422L The above example describes an EIA – 485 cable with 4 pairing, 22 AWG. Sheath type LSZH. |
| EIA – 485 | PAIRING | AWG | SHEATH |
| 48 | X | XX | X |
|---|---|---|---|
|
1 – 1 Pair
2 – 2 Pair
4 – 4 Pair
|
22 -22 AWG 24 -24 AWG | (nil) - PVC L- LSZH P - PE |
