12-96 Core Firetuf™ I10S Fire Resistant Fibre Optic Cable, LSZH

2-12 Cores, Indoor, Breakout, Tight Buffer Distribution Cable, LSZH

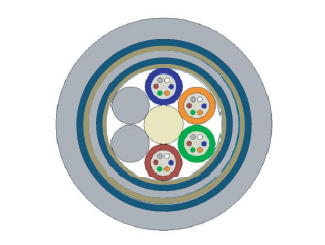

Features

Central strength member (CSM): steel wire with plastic coating when needed.
Tube: thermoplastic material, containing up 4,6 or 12 optical fibres and filled with a suitable water tightness compound.
Stranding: The required numbers of elements (tubes or fillers) are SZ stranded around the central strength member.
Longitudinal Water Tightness: Water blocking Tape & Yarn
Fire Barriers: Inner & outer special fire blocking tapes.
Armours: Inner & outer corrugated steel tapes.
Sheaths: Inner & outer LSZH

Technical Data:
No. of fibres		4,6,12,24	36,48,72	96
Design (Elements×Fibres per Tube)		Upto 4×6	6×6,4×12,6×12	8×12
Loose Tube / Filler- Ø	mm	2.1	2.1	2.1
CSM/sheath diameter	mm	2.0	2.2	2.0/3.5
Inner sheath thickness	mm	1.0 nominal	1.0 nominal	1.0 nominal
Outer sheath thickness	mm	2.0 nominal	2.0 nominal	2.0 nominal
Cable Diameter (AxB)	mm	15.3 nominal	15.3 nominal	16.8 nominal
Cable Weight	kg / km	300	317	340

Max installation tension	N	3000
Min. bending radius	mm	Without Tension		Under Maximum Tension
		10×Cable-Ф		20×Cable-Ф
Loose Tube / Filler- Ø	mm	2.1	2.1	2.1
Temperature range	◦C	Installation	Transport & Storage	Operation
Flame Retardant		-10->+60;	-10->+60;	-10->+60;
Fire Resistance		IEC 60332-3-24
		IEC60331 – 25, In house test up to 800◦C, 2 hrs.

Please refer to our General Installation, Safety & Handling recommendations before handling.

Application

The application of this cable is circumstances where a very high degree of fire safety is required as the cable will function during a fire,has limited fire spread,has limited smoke generation and is halogen-free. Widely used in industrial environment due to its robust construction.

Standards

EN 60794 - 3 - 10

Fire Rating

IEC 60332 - 1, IEC 61034 - 2, IEC 60754 - 1 / 2

Optional

Armouring SWA or SWB

Main Characteristics
Test	Standard	Value	Sanction*
Max. installation tension	IEC 60794-1-2-E1	3000 N	fibre strain ≤ 0.33%, ∆α reversible
Crush(short term)	IEC 60794-1-2-E3	3000 N / 100mm	∆α≤ 0.3 dB(MM), 0.1 dB (SM)
Temperature range	IEC 60794-1-2-F1	40 -> + 70◦C	∆α≤ 0.3 dB/km(MM), 0.1 dB /km(SM)
Water Penetration	IEC 60794-1-2-F5B	40 -> + 70◦C	No water leakage after 24 hour

* values for multi-mode fibres, all optical measurements performed at 1300 nm values for single-mode fibres, all optical measurements performed at 1550 nm

Ordering Information
FIRETUF® \|10S Fire Resistant FO Cable part numbers are made up using the table below.The part number always starts with the letters \|10S to denote that it is a FIRETUF® \|10S Fire Resistant FO Cable. This is followed by 3 numbers which symbolises the core quantity and then 2 letters to denote the fibre type. Example of a \|10S part number: \|10S024M1 The above example describes an OM1 (50um) FIRETUF® \|10S Fire resistance FO Cable, with 24 cores.

Ordering Information

FIRETUF® |10S Fire Resistant FO Cable part numbers are made up using the table below.The part number always starts with the letters |10S to denote that it is a FIRETUF® |10S Fire Resistant FO Cable. This is followed by 3 numbers which symbolises the core quantity and then 2 letters to denote the fibre type. Example of a |10S part number: |10S024M1 The above example describes an OM1 (50um) FIRETUF® |10S Fire resistance FO Cable, with 24 cores.

\|10S	XXX	XX
\|10S	Core quantity	FIBER TYPE
	012 -12 CORES 024 - 24 CORES 036 - 36 CORES 048 - 48 CORES 096 - 96 CORES	SM - SINGEMODE, G652D, 9um M1 - OM1, 62.5um M2 - OM2, 50um M3 - OM3, 50um M4 - OM4, 50um
