Category: UC connect

UC CONNECT® HD 1RU 48 PORT UTP/STP UNLOADED PATCH PANEL

HD 1U 24p flatHD 1U 24p Angle

GENERAL SPECIFICATIONS
Item Description
Rack Type EIA 310D, 19 Inch Rack Mount
Rack Unit 1RU
Interface, Front RJ45
Total Ports 48 Port
Compatibility HD family Keystone Modular jack UTP/STP
Panel Style Flat, and Foldable Angle
Cable Type Unshielded and Shielded
Rear Cable Manager 2 Rows, Integrated Individual Smart Clip Lock Rear Cable Management
Color Black
MECHANICAL AND THERMAL PROPERTIES
Item Description
Dimension (WXDXH) Flat Panel, 482.60X109X44 mm
Foldable Angle Panel, 482.60X194X44 mm
Flammability Rating UL 94 V-0
Operating Temperature -20 °C to +60 °C
Storage Temperature -40 °C to +75 °C
Relative Humidity Up to 95%, non-condensing
Ordering Information
Part Number Description Weight Packaging Unit
YPPBP02777 Draka UCCONNECT HD 1RU 48 Port Flat STP Unloaded Patch Panel, Black 563g 1 per box
YPPBP02779 Draka UCCONNECT HD 1RU 48 Port Foldable Angled STP Unloaded Patch Panel, Black 455g 1 per box



UC CONNECT® HD 1RU 24 PORT UTP/STP UNLOADED PATCH PANEL

GENERAL SPECIFICATIONS
Item Description
Rack Type EIA 310D, 19 Inch Rack Mount
Rack Unit 1RU
Interface, Front RJ45
Total Ports 24 Port
Compatibility HD family Keystone Modular jack UTP/STP
Panel Style Flat, and Foldable Angle
Cable Type Unshielded and Shielded
Rear Cable Manager Integrated Individual Smart Clip Lock Rear Cable Management
Color Black
MECHANICAL AND THERMAL PROPERTIES
Item Description
Dimension (WXDXH) Flat Panel, 482.60X93.10X44.00 mm
Foldable Angle Panel, 482.60X180X44.00 mm
Flammability Rating UL 94 V-0
Operating Temperature -20 °C to +60 °C
Storage Temperature -40 °C to +75 °C
Relative Humidity Up to 95%, non-condensing
Ordering Information
Part Number Description Weight Packaging Unit
HDPPF0600BK Draka UCCONNECT HD 1RU 24 Port Flat STP/UTP Unloaded Patch Panel, Black 481g 1 per box
HDPPA0600BK Draka UCCONNECT HD 1RU 24 Port Foldable Angled STP/UTP Unloaded Patch Panel, Black 455g 1 per box

UCCONNECT® UC9500 High Density Fibre Suite

UC9500 MTP®/MPO Module

Features

  • Recommended for method/polarity “B“ 10G MPO
    channel using Type “B“ MPO Trunk Cable to achieve
    simple migration to method/polarity “B“ 40/100G
    MPO channel
  • Available in Duplex LC
  • Utilizes bend-insensitive fibre
  • Available in G657A, OM3 and OM4
  • Plug & Play Installation
  • Type“P”is Draka UC defacto, Type A and B are available

Application

UC9500 Module MPO/MTP® LC-Duplex is designed specifically to fit UC9500 Distribution Panel. Design and engineered to reduce total cost of ownership when deployed with 12-Fibre MPO-MPO, or 12-Fibre MTP-MTP, fibre trunks. This module supports the popular 2-fibre 10Gb up to the next generation 25Gb/40Gb/100Gb/400Gb applications. MTP® is a registered 12-fibre MPO connector, trademark of USCONEC.

Contruction
Module Housing Material Aluminum Alloy, Thickness 0.8mm
Module Housing Surface Finish Watermark painted
Module Housing Colour Black
LC-Duplex Adaptor Colour OM3 : AQUA ; OM4 : VIOLET ; Singlemode : BLUE
Environmental
Operating Temperature -20°C to + 70°C
Storage and shipping temperature -40°C to + 75°C


Ordering Information
UC P/N Product Description P.U
PPMSPM19541D-P12 Draka UCCONNECT UC9500 SERIES 1x MPO/APC-12(M)-LC/UPC(D) MODULE SM G.657A2 TYPE P BLUE 1 set/ box
PPMLPM19541D-P12 Draka UCCONNECT UC9500 SERIES LOW LOSS 1x MPO/APC-12(M)-LC/UPC(D) MODULE SM G.657A2 TYPE P BLUE 1 set/ box
PPMSPM29542D-P24 Draka UCCONNECT UC9500 SERIES LOW LOSS 2x MPO/APC-12(M)-LC/UPC(D) MODULE SM G.657A2 TYPE P BLUE 1 set/ box
* For more information, please download technical datasheet.

UCCONNECT® UC9500 High Density Fibre Suite

UC9500 Splice Tray Cover

Features

  • Light weight for easy handling
  • High quality fingerprint and dust resistant surfaces
  • It is compatible with stackable UC9500 Splice Tray; its detachable to fit onto top of a splice tray stack.

Application

UC9500 Splice Tray Cover keeps the fusion splices away from accidental stress-strain, water droplets and dust particles.

Colour : Black

Technical Information
Material Details
Cover material ABS

UC9500 Splice Tray Cover

UC9500 24-Fibre Splice Tray (Cover-less)

Features

  • Stackable with detachable cover
  • Light weight
  • Highly durable
  • Support up to 24multimode and single-mode fusion splice.

Application

UC9500 24-Fibre Splice Tray is a fusion splice enclosure, providing critical protection for fusion splices and is compatible with UC9500 1U Distribution Panel-Slot Empty Fixed.

Technical Information
Material Details
Cover material ABS
Colour Black
Weight
Surface finish Resistant to finger-print and dust

UC9500 24-Fibre Splice Tray (Cover-less)

Ordering Information
UC P/N Product Description P.U
PPST9521-C Draka UCCONNECT Fibre Splice Tray Cover for PPST9521-24 Black 1pc
PPST9521-24 Draka UCCONNECT Fibre Splice Tray 12-24 Fibre for UC9500 Series Black 2pc/box
PPST95-48 Draka UCCONNECT Fibre Splice Tray 48 Fiber For UC9500 Series White 1pc

UCCONNECT® UC9500 High Density Fibre Suite

UC9500 Front-Panel

Features

  • Left and right push-pull rivet
  • Support Single-Mode & Multi-Mode Simplex/Duplex/Quadruplex adaptor.
  • Support LC, SC, FC, MPO, ST.
  • Light Weight
  • Easy and fast adds, moves and changes.
  • Easy Handling

Application

Front Plate for UC9500 Series.

Construction
Material Details
Plate material SPCC Steel (Cold Rolled Steel Plate)

Ordering Information
Please contact our local offices for more details or refer to technical datasheet available below.

UCCONNECT® UC9500 Series Distribution Panel

UC9500 Distribution Panel, Empty

Features

  • Supported adaptor includes LC. SC , FC, ST, MPO , MTP®
  • Mount to standard EIA 19″ rack rails
  • Removable top cover provides access to connections, fibres, and slack storage in rear of tray
  • Multiple trunk cable entry locations provided on rear and sides of enclosure
  • Include fiber optic cable routing kit for cable management

Application

UC9500 Distribution Panel use to house and organize the trunk fiber optic cable, compatible with MPO-LC cassettes, fiber adaptor panels and patch cords. Easy access from front and rear. It is ideal for fast and reliable patch solutions within main, horizontal and equipment distribution areas.

Construction
Material Details
Matrix SPCC (Cold rolled Steel Plate)
Surface Finishing Powder Coating
Dimension 1U x 482 mm x 300 mm; 2U x 482 mm x 300 mm, 4U x 482 mm x 452 mm
Weight 3.26kg (1U), 6kg (2U/4U)

* Standard Panel comes without fibre adaptor, front-panel and splice tray.

* Fits up to 2x UC9500 Splice Tray 24F (PPST9521-24) and 1x UC9500 Splice Tray Cover (PPST9521-C) per each rack unit.


Ordering Information
UC P/N Product Description P.U
PP9510 Draka UCCONNECT FIBRE OPTIC PATCH PANEL FLAT TYPE 19″ 1U 4 SLOT EMPTY BLACK UC9500 Series 1pc
PP9515 Draka UCCONNECT FIBRE OPTIC PATCH PANEL DRAWER TYPE 19″ 1U 4 SLOT EMPTY BLACK UC9500 Series 1pc
PP9520 Draka UCCONNECT FIBRE OPTIC PATCH PANEL FLAT TYPE 19″ 2U 8 SLOT EMPTY BLACK UC9500 Series 1pc
PP9540 Draka UCCONNECT FIBRE OPTIC PATCH PANEL FLAT TYPE 19″ 4U 12 SLOT EMPTY BLACK UC9500 Series 1pc

MPO/MTP® Hydra Cable Assemblies

Indoor, LSZH, Low Loss, MTP® or MPO

Overview

  • Material of cable sheath is Low Smoke Halogen Free
  • Fibre Type: Please refer to technical datasheet
Technical Specification
Item Technical Parameters
Connector Type MPO/MTP® LC/SC
Max. Insertion Loss 0.50dB (MM)

0.75dB (SM)

 0.25dB (MM)

0.30dB (SM)
Min. Return Loss 26dB (MM)

45dB (SM – UPC)

55dB (SM – APC)

 30dB (MM)50dB (SM – UPC)

65dB (SM – APC)

Note: The insertion loose based on above value need to plus fiber attenuation.

  • MTP® is a registered MPO connector, Trademark of USCONEC
  • Low loss fibres or Draka BendBright™ fibres are used for better insertion
    loss requirements when needed.
  • Factory Terminated and Component Tested
Ordering Information
Please contact our local offices for more details or refer to technical datasheet available below

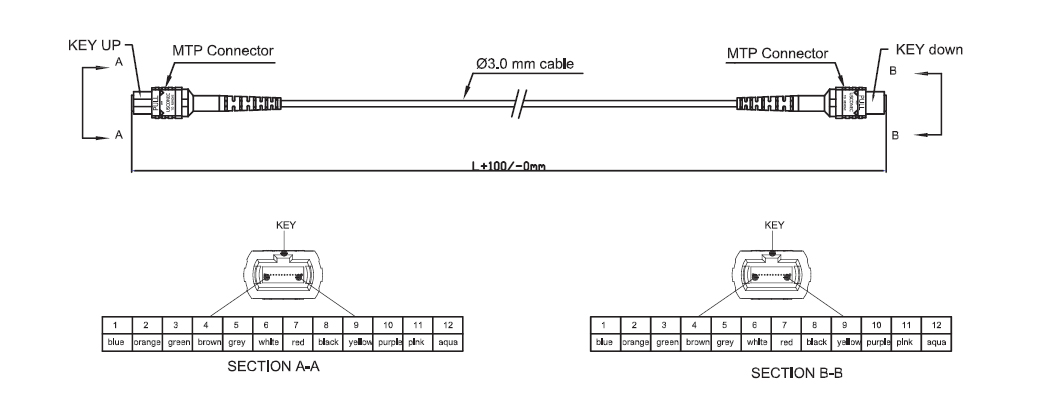

MTP®/MPO Pre-Terminated Trunk Cable

Indoor, LSZH, Low Loss, MTP® or MPO

  • MTP® is a registered MPO connector, Trademark of USCONEC
  • Low loss fibres or Draka BendBright™ fibres are used for better insertion
    loss requirements when needed.
  • Factory Terminated and Component Tested

Overview

  • Female (Standard) & Male MTP Connectors.
  • Type A , B and C available.
  • Factory Terminated and Tested.
  • Lightweight & High density
  • Sheath : Flame Retardant LSZH
Technical Specification
Item Technical Parameters
Connector Type Max. Insertion Loss Min. Return Loss
 MPO/ MTP ™ MM : 0.50dB ; 0.35dB (Low Loss)

SM : 0.75d ; 0.35dB (Low Loss)

 MM : 26 dB

SM : 45 dB (UPC) ; 55dB (APC)

Note: The insertion loose based on above value need to plus fiber attenuation.

Ordering Information
Please contact our local offices for more details or refer to technical datasheet available below.

UC Copper Patch-Cord SLIMFLEX 30AWG

Slim, Stranded, LSZH

Slimmer then normal patch cables with unique flexibility

  • Lesser than 4,5mm OD
  • Flexible stranded bare copper conductor patch cable.
  • 2xRJ45 connector (TIA568-B coding)
  • Different jacket color options
  • proven performance
  • Component level tested

Standards

  • ISO/IEC 11801 2nd Ed.;
  • EN 50173;
  • ANSI TIA/EIA 568-C.2;
  • IEC 61935-2;
  • IEC 60603-7

Features

  • Slim: Unique tight extrusion for up to 30% reduction in diameter
  • Flesible: Special grade of highly durable yet flexible stranded copper
  • Gold Plated Contacts: 5Oum to maximise connections
  • Unique Boot Design: Prevents entanglement during re-insertion
Specification
Product Family Related Cable Description
UC C500 Class Ea Channel, screened Cat 6a S/FTP 30/7 AWG 4P patch cable LSZH
Performance
Item Description
Flame properties – LSZH IEC 60332-1, IEC 61034, IEC 60754-1 & 2
Standards EN 50173 / 50288, ISO / IEC 11801 Amendment 2,
IEC 60603-7
Length 1m, 1.5m, 3m, 5m, other lengths upon request
Ordering Information
SAP IC UC P/N UC Material Code Product Description P.U
YPSBP01914 PS8671WH- 1 UC C500 PS SF WH L 00100 V3 S/FTP Cat6a SLIMF Patch cord WHITE LSZH 1M, 30 AWG, SILVER Plug 1pc/bag
YPSBP01922 PS6671WH- 1 UC C500 PS SF WH L 00100 V4 S/FTP Cat6a SLIMF Patch cord WHITE LSZH 1M, 30 AWG, GOLD Plug 1pc/bag

UC Copper Patch-Cord SLIMFLEX 28AWG

Slim, Stranded, LSZH

Features

  • Slim: Unique tight extrusion for up to 30% reduction in diameter
  • Flexible: Special grade of highly durable yet flexible stranded copper
  • Gold Plated Contacts: 50um to maximise connections
  • Unique Boot Design: Prevents entanglement during re-insertion
Specification
Product Family Related Cable Description
UC C400 Class E Channel, unscreened Cat 6 U/UTP 28/7 AWG 4P patch cable LSZH
Performance
Item Description
Flame properties – LSZH IEC 60332-1, IEC 61034, IEC 60754-1 & 2
Standards EN 50173 / 50288, ISO / IEC 11801 Amendment 2,
IEC 60603-7
Length 1m, 1.5m, 3m, 5m, other lengths upon request

Slimmer then normal patch cables
with unique flexibility

  • Lesser than 4mm OD vs normal
    ~5.4mm
  • Flexible stranded bare copper
    conductor patch cable
  • 2xRJ45 connector (TIA568-B coding)
  • Different jacket color options
  • Proven performance
  • Available in PVC or LSHF
  • Component level tested

Standards

  • ISO/IEC 11801 2nd Ed.;
  • EN 50173;
  • ANSI TIA/EIA 568-C.2;
  • IEC 61935-2;
  • IEC 60603-7
Ordering Information
SAP IC UC P/N UC Material Code Product Description P.U
YPSBP00498 PS9671GY- 1 UC C400 PS UU GY L 00100 V2 U/UTP Cat6 SLIMF Patch cord Grey LSZH 1M 28 AWG 1pc/bag
